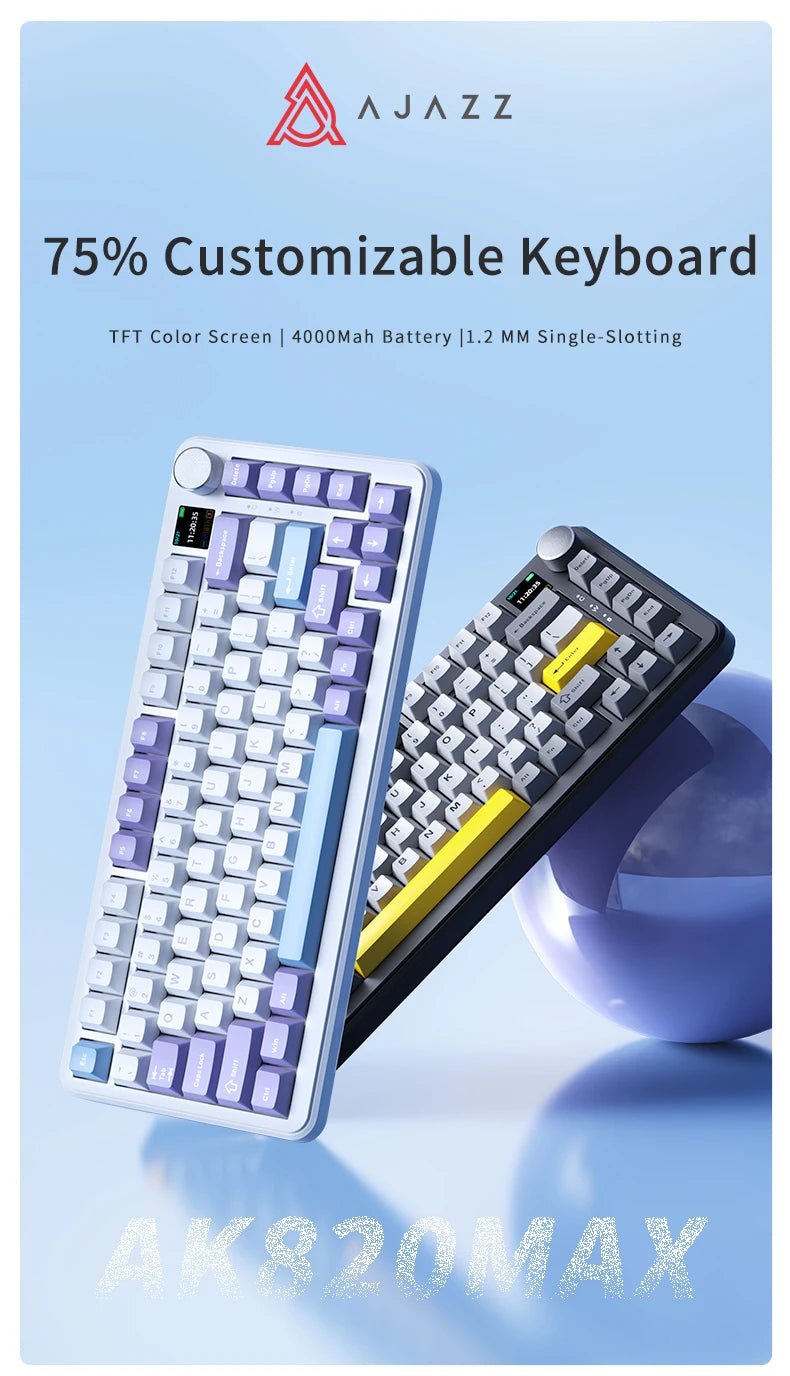

PRODUCT PARAMETERS

Product Name: AJAZZ
Product Model: AK820MAX
Product Weight: About 850g
Product Size: 333 x 143 x 20.5 mm
Shell Material: ABS Injection Molding
Matrix: Full-Key Punchless
Lighting Effects:

• RGB
• 20 Sets of Lighting Effects for version with screen
• 16 Sets of Lighting Effects for regular version

Keycaps: PBT Material, OEM Profile
Battery Capacity: 4000mAh 3.7V Lithium Battery
Cable Length: 1.6m PVC Type-C Cable
Key Layout:

• 81 Keys for the version with screen
• 82 Keys for the regular version (including a metal volume knob)

Interface Type: Detachable Type-C Interface
Connection Modes:

• USB Wired
• 2.4G Wireless
• 5.1 Bluetooth

Supported Systems:

• Windows Vista/XP/7/8/10/11
• Mac
• Android

Package Contents:

• Keyboard x1
• Type-C Cable x1
• User Manual x1
• Dust Cover x1
• Keycap Puller x1
• Switch Puller x1

Product Features:

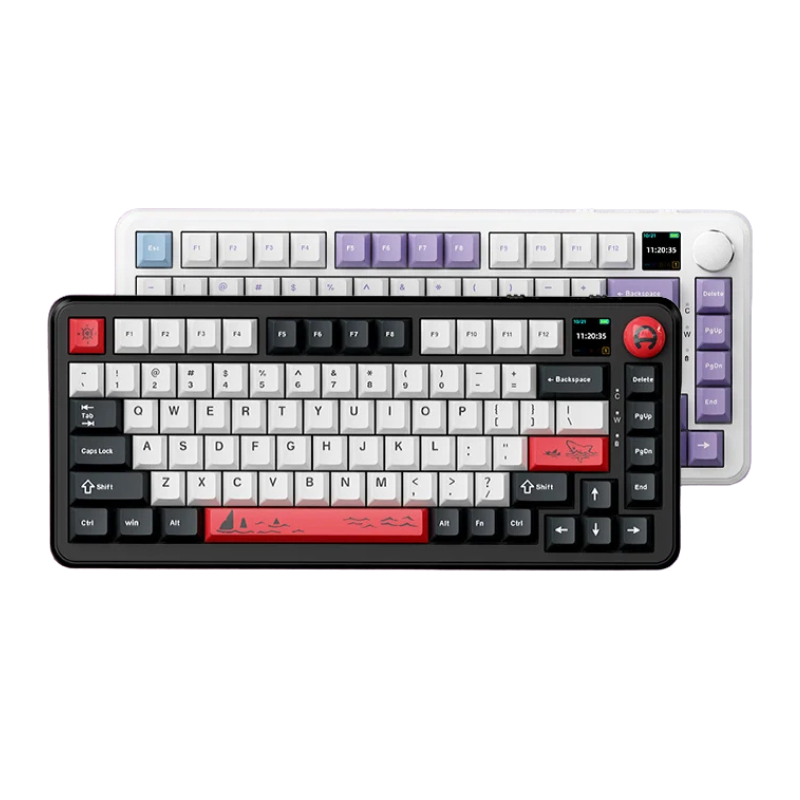

• 0.85-inch TFT Color Screen: High-definition, durable TFT color screen capable of displaying time, connectivity modes, battery status, and custom colorful GIF animations.

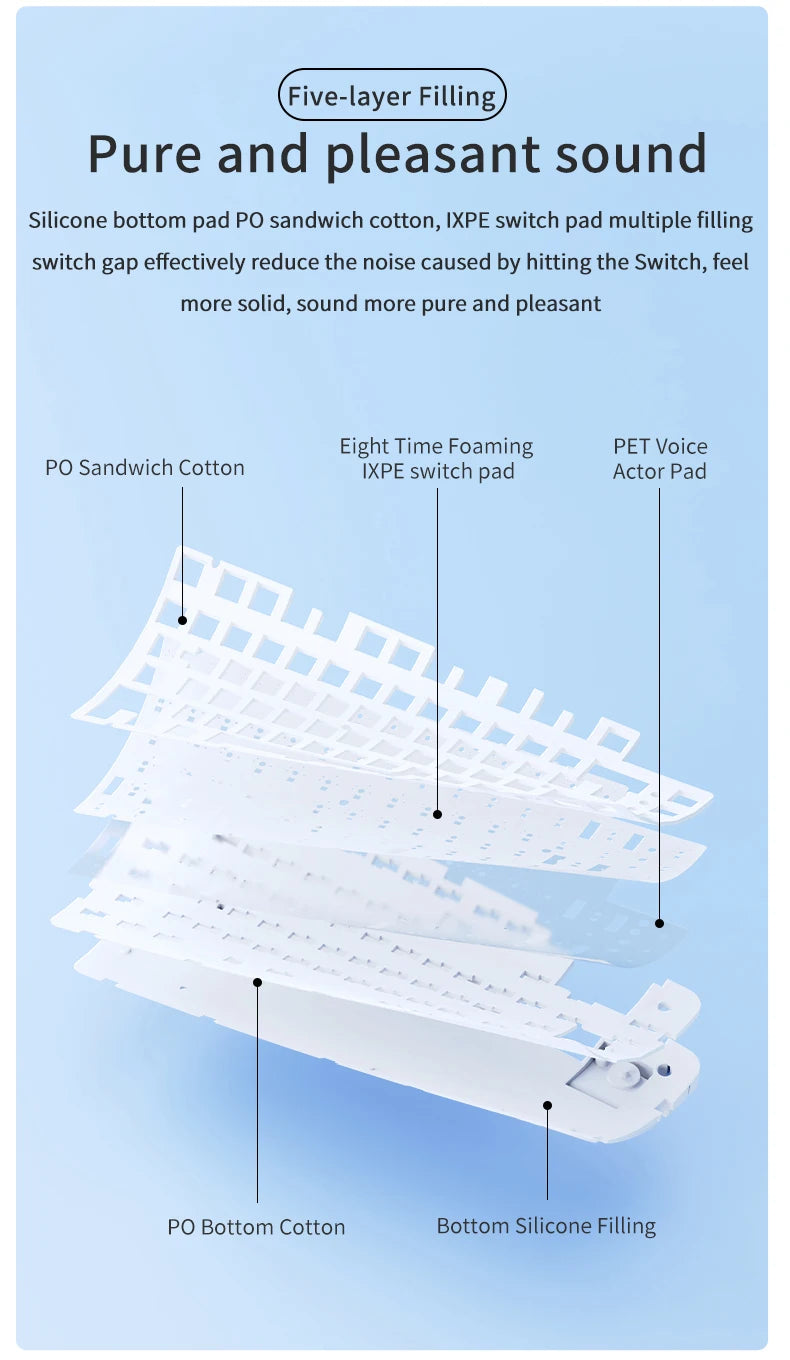

• Pure and Pleasant Sound: Silicone bottom pad, PO sandwich cotton, and LXPE switch pad reduce noise caused by hitting the switch, providing a solid feel and pleasant sound.
• PCB Single Key Slot: 1.2mm thickness, single key slot design for better feel, greater softness, and elasticity.
• Double-Stage Adjustable Footrest: Adjustable input angle with anti-slip rubber pads for a stable experience.
• Side Function Keys: Located on the upper side for easy switching between wireless, Bluetooth, wired, and system modes (Windows and Mac).

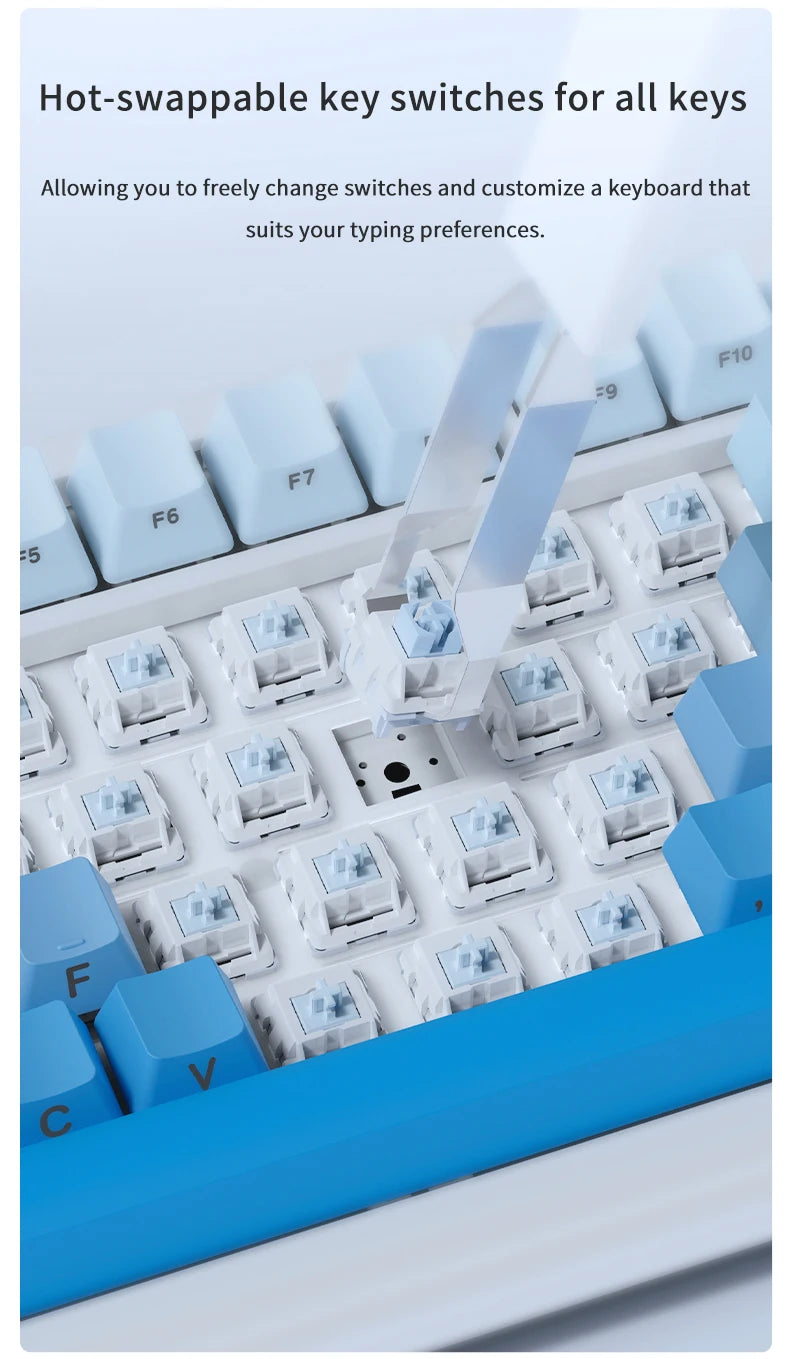

• Hot-Swap: Hot-swappable key switches for all keys, allowing customization to suit typing preferences.

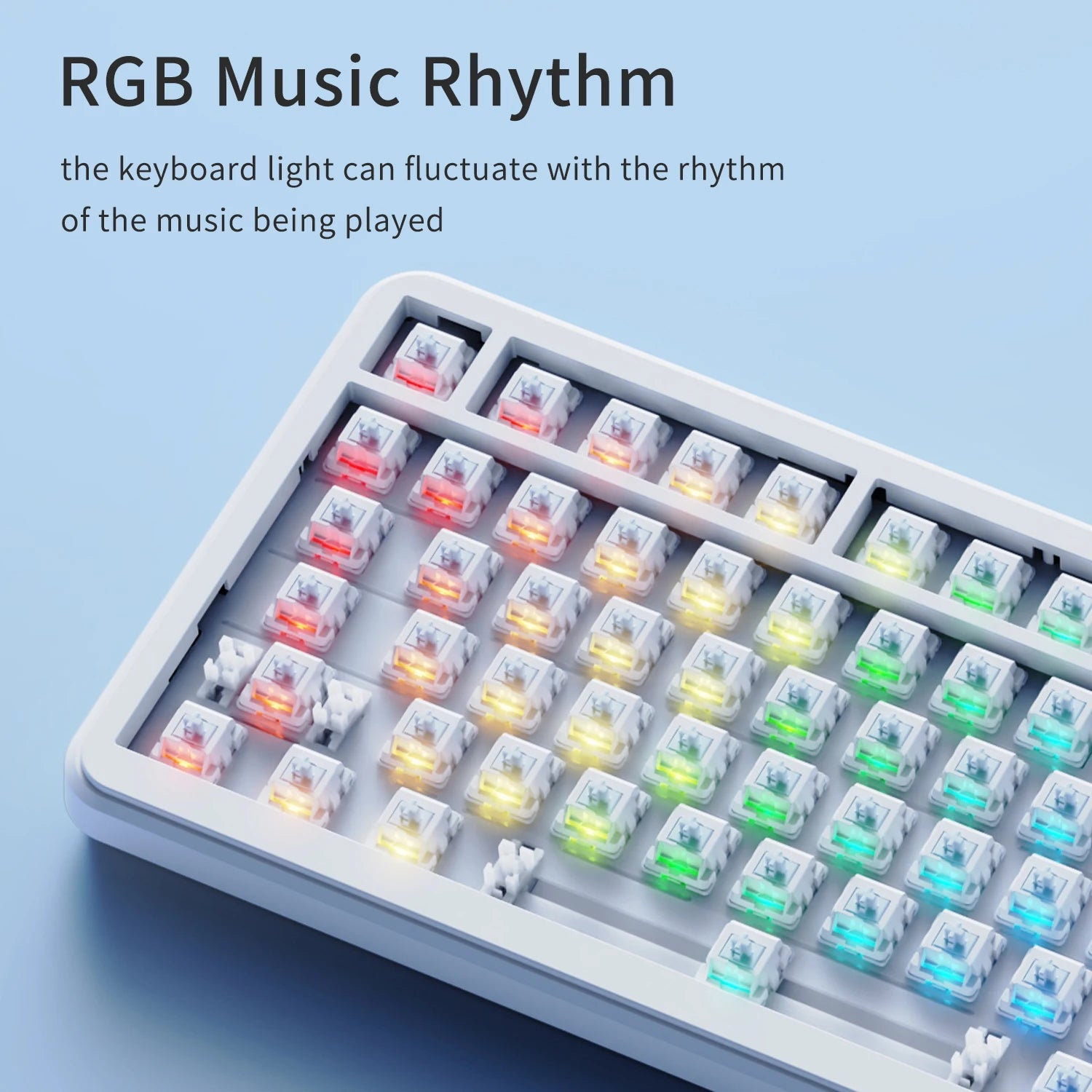

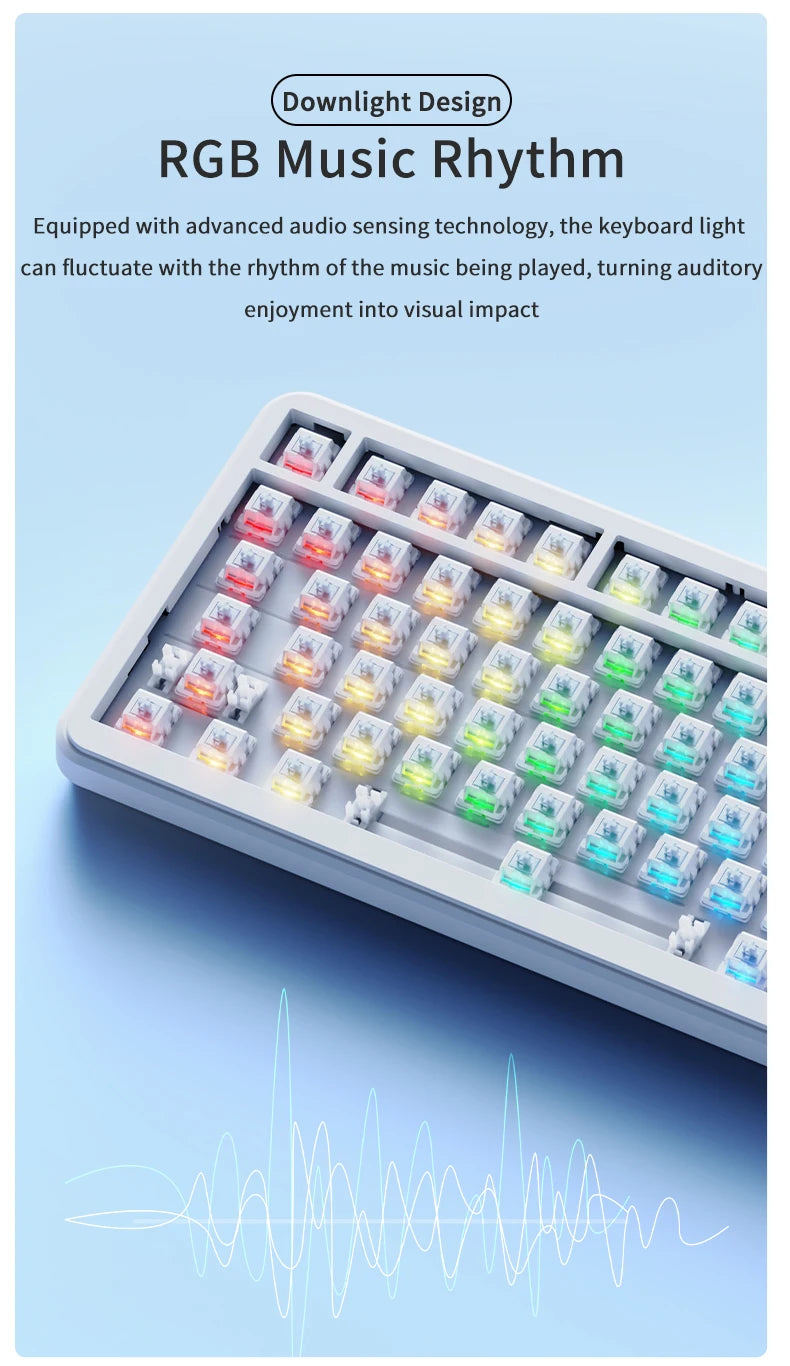

• RGB Music Rhythm: Audio sensing technology makes the keyboard light fluctuate with the rhythm of the music being played, enhancing the visual impact of sound.

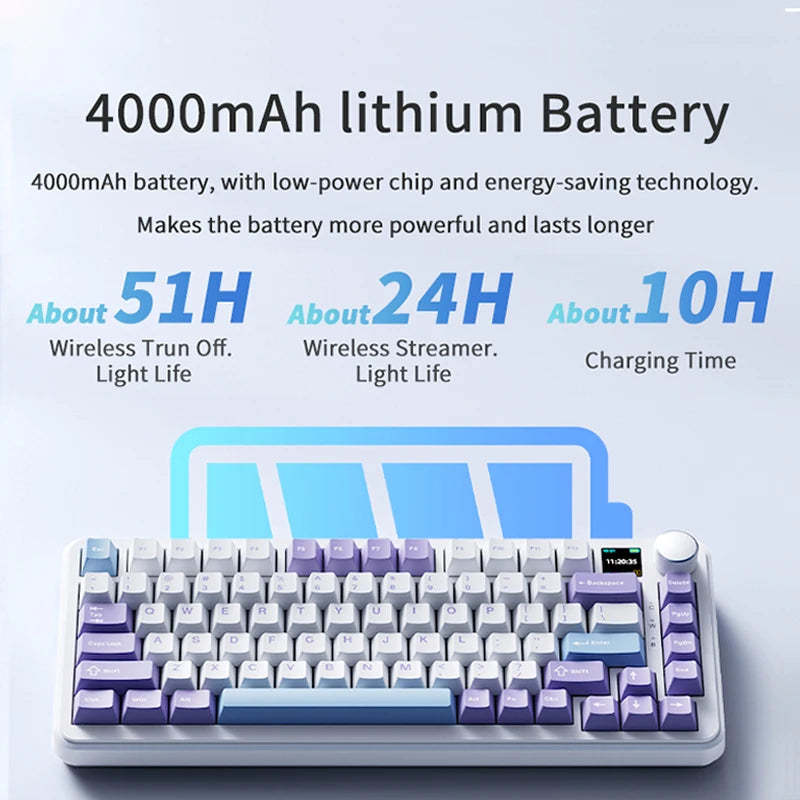

• 4000mAh Lithium Battery: Low-power chip and energy-saving technology for a longer-lasting battery.

Switch Introduction:

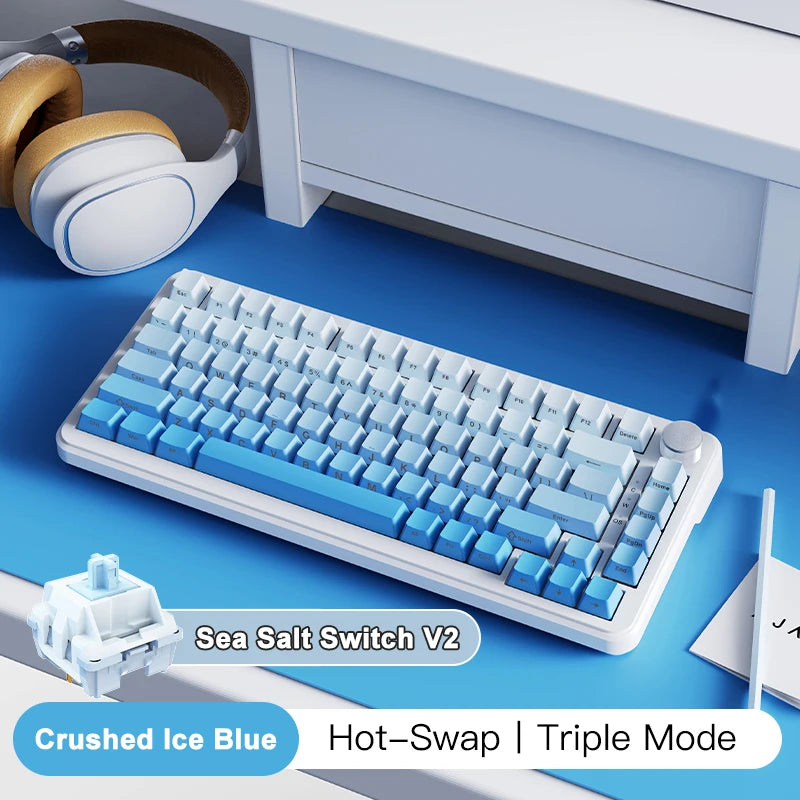

• Sea Salt Switch V2:

  • Total Travel: 3.5 ± 0.4mm
  • Actuation Point: 2.0 ± 0.5mm
  • Actuation Force: 50 ± 10gf
  • Bottom-out Force: 57 ± 10gf

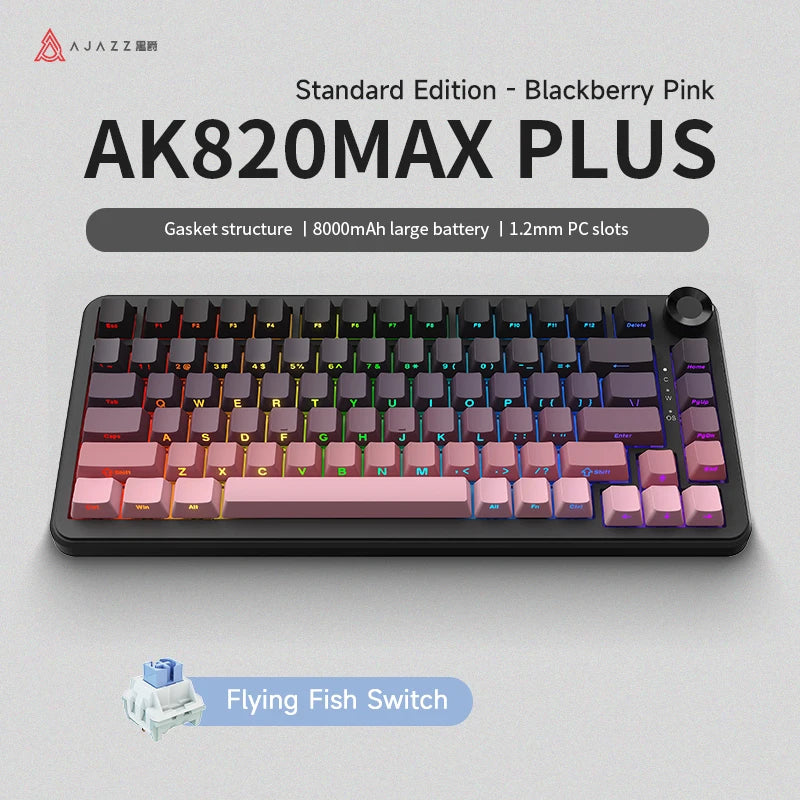

• Fly Fish Switch:

  • Total Travel: 3.5 ± 0.5mm
  • Actuation Point: 2.0 ± 0.5mm
  • Actuation Force: 40 ± 10gf
  • Bottom-out Force: 48 ± 10gf

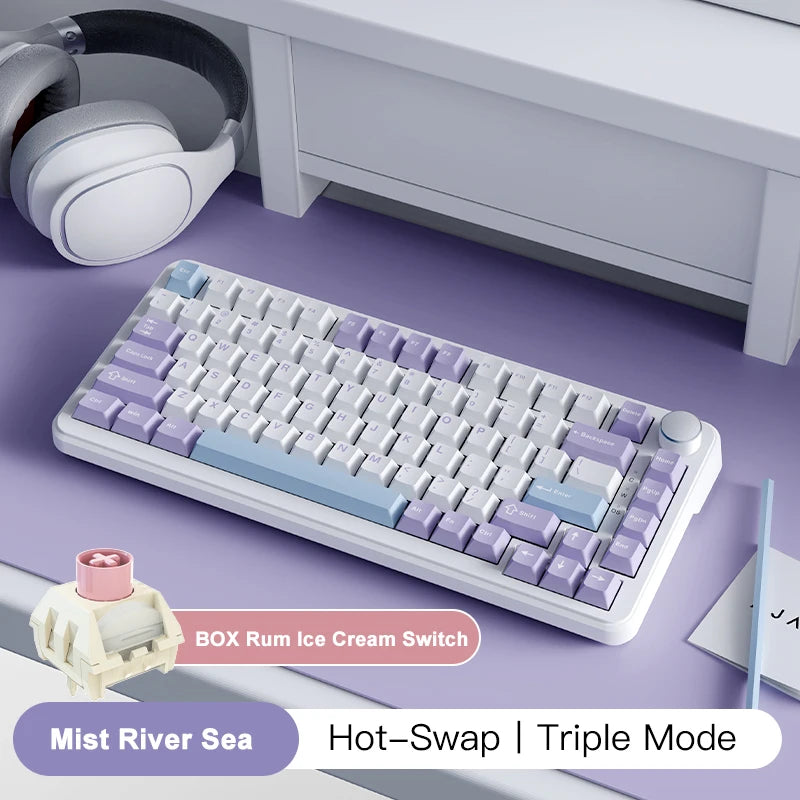

• BOX Rum Ice Cream Switch:

  • Total Travel: 3.6 ± 0.3mm
  • Actuation Point: 1.4 ± 0.4mm
  • Operational Force: 55 ± 10g (With Light Guide)

• Gift Switch:

  • Total Travel: 3.6 ± 0.2mm
  • Actuation Point: 2.0 ± 0.4mm
  • Actuation Force: 45 ± 8gf
  • Bottom-out Force: 60 ± 8gf

• Avocado Switch:

  • Total Travel: 3.5 ± 0.5mm
  • Actuation Point: 1.5 ± 0.5mm
  • Actuation Force: 45 ± 10g
  • Bottom-out Force: 52 ± 10g
