SPECIFICATIONS

Brand Name: Hmeily
Choice: yes
Origin: Mainland China
Plug Type: EU Plug

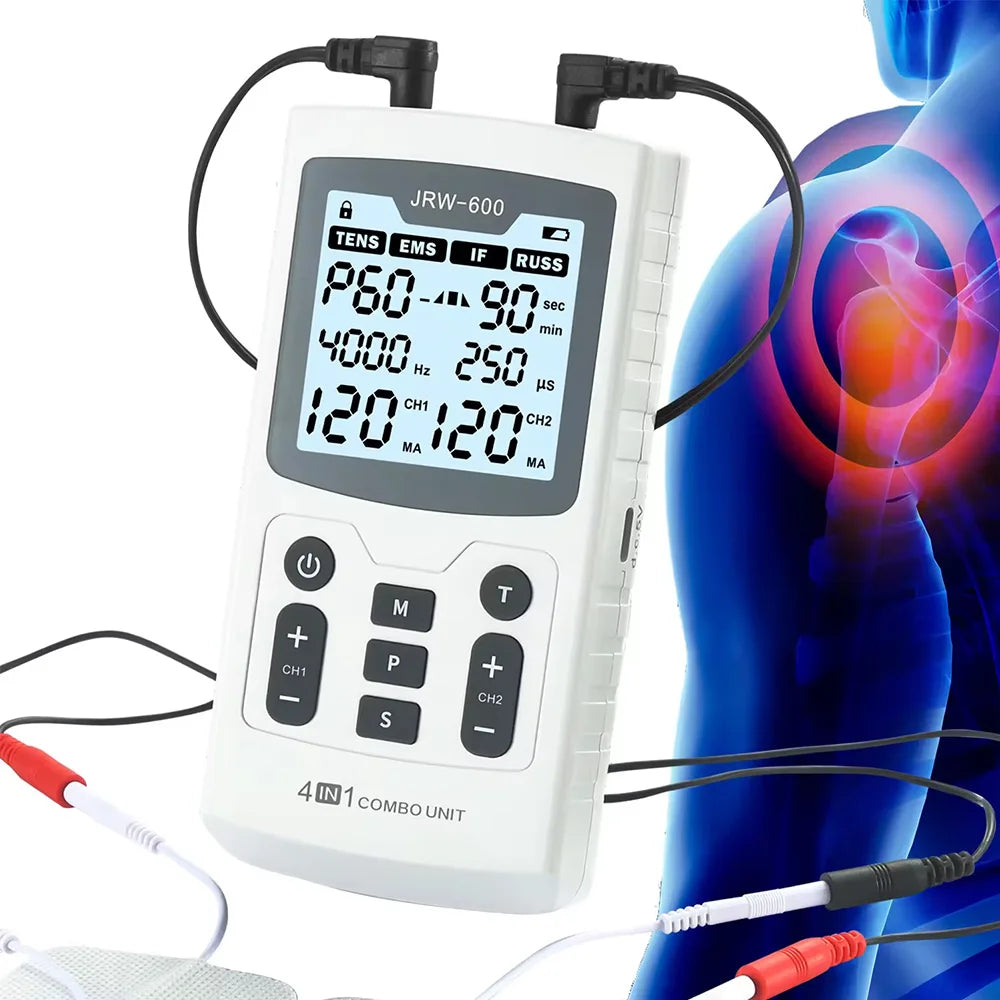

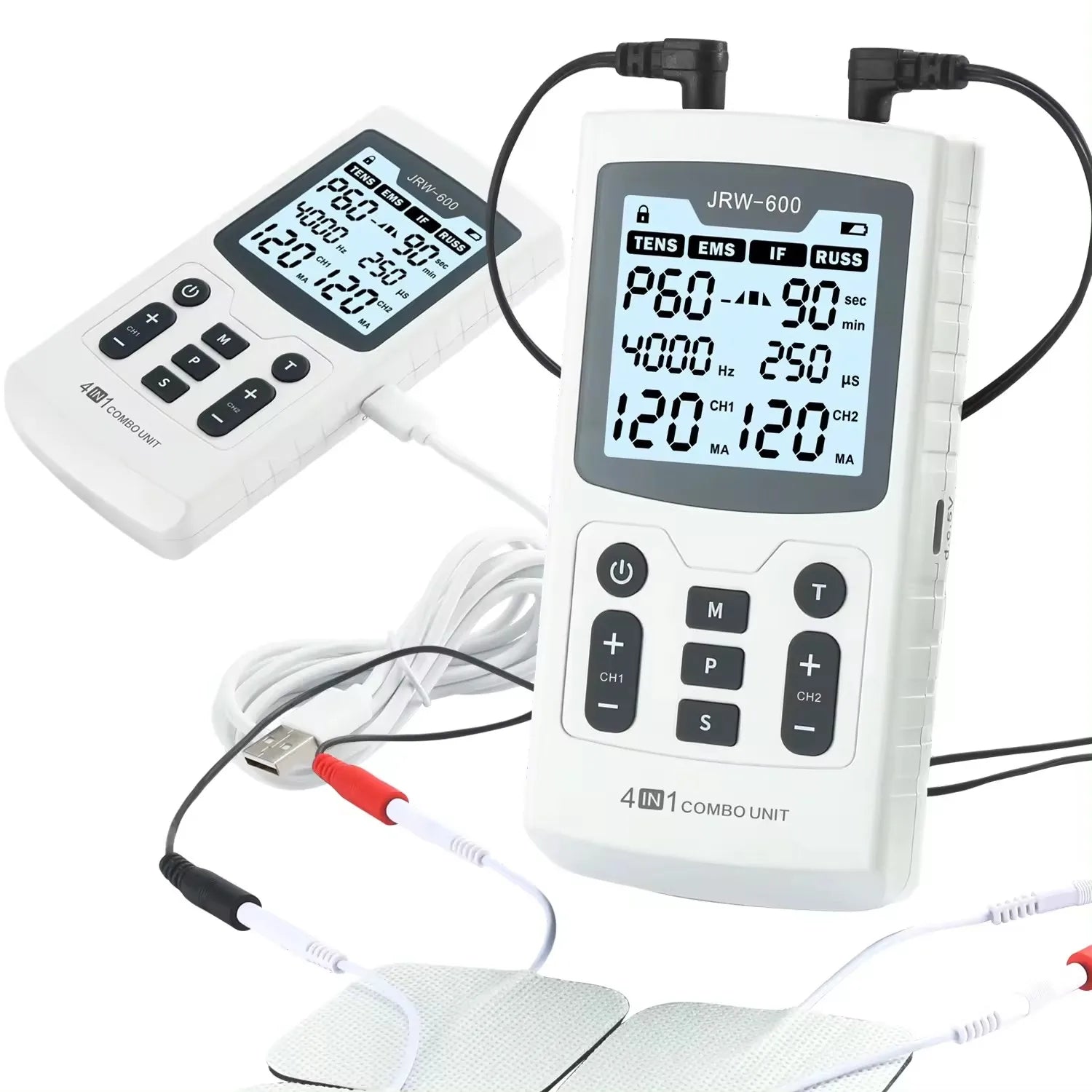

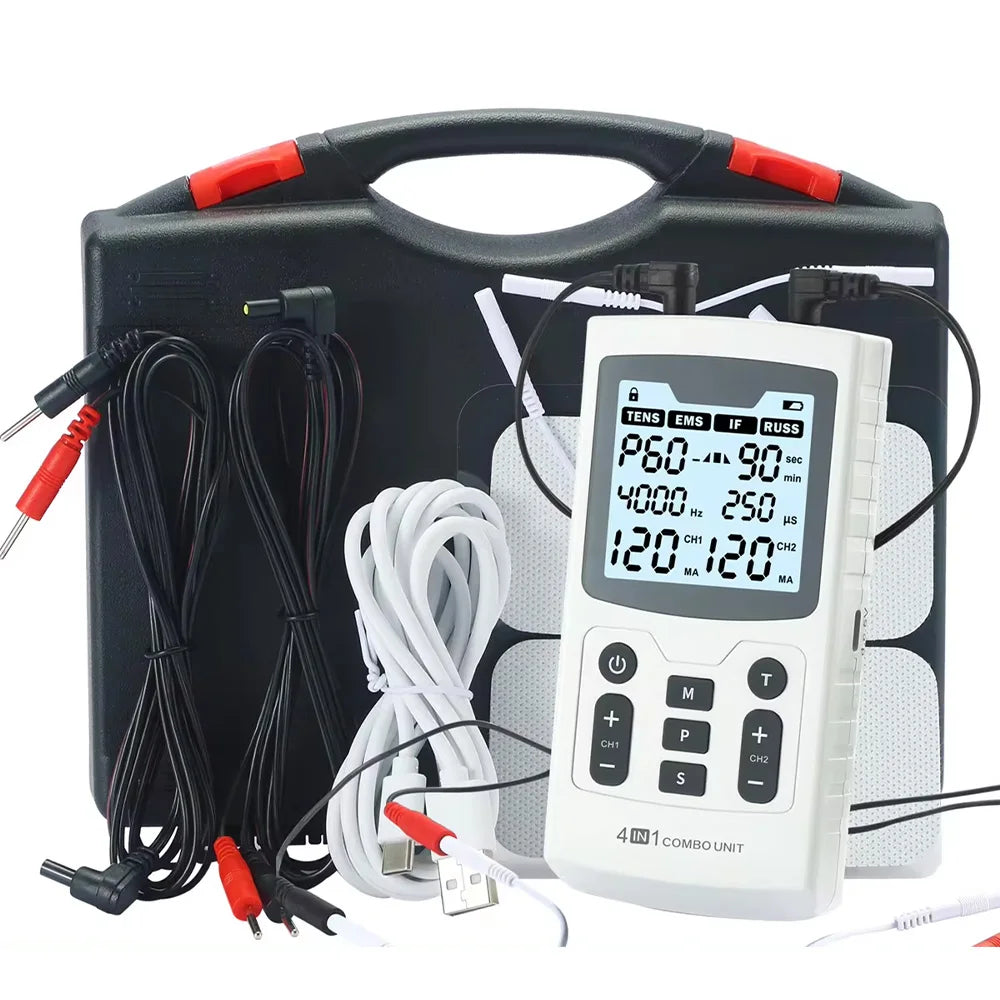

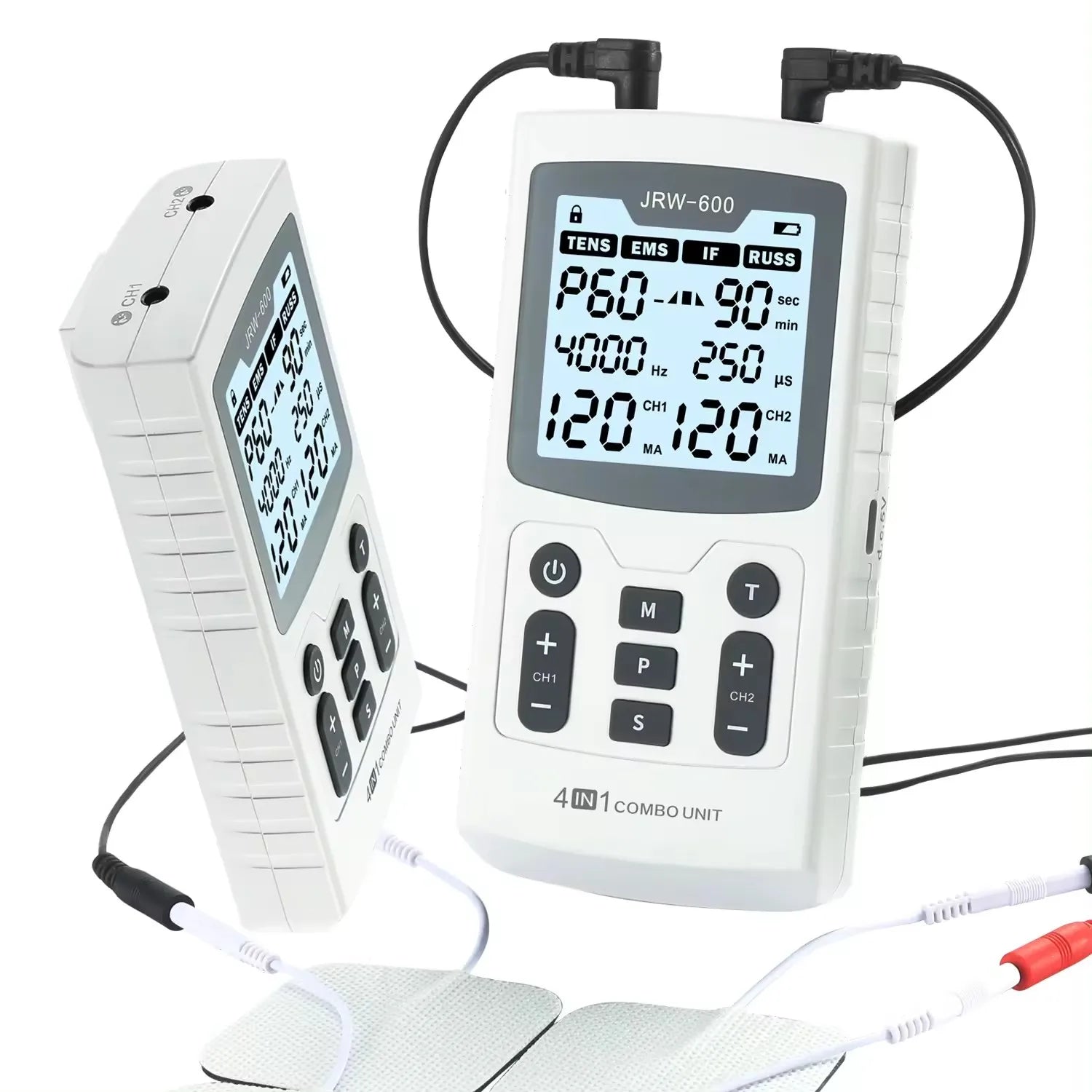

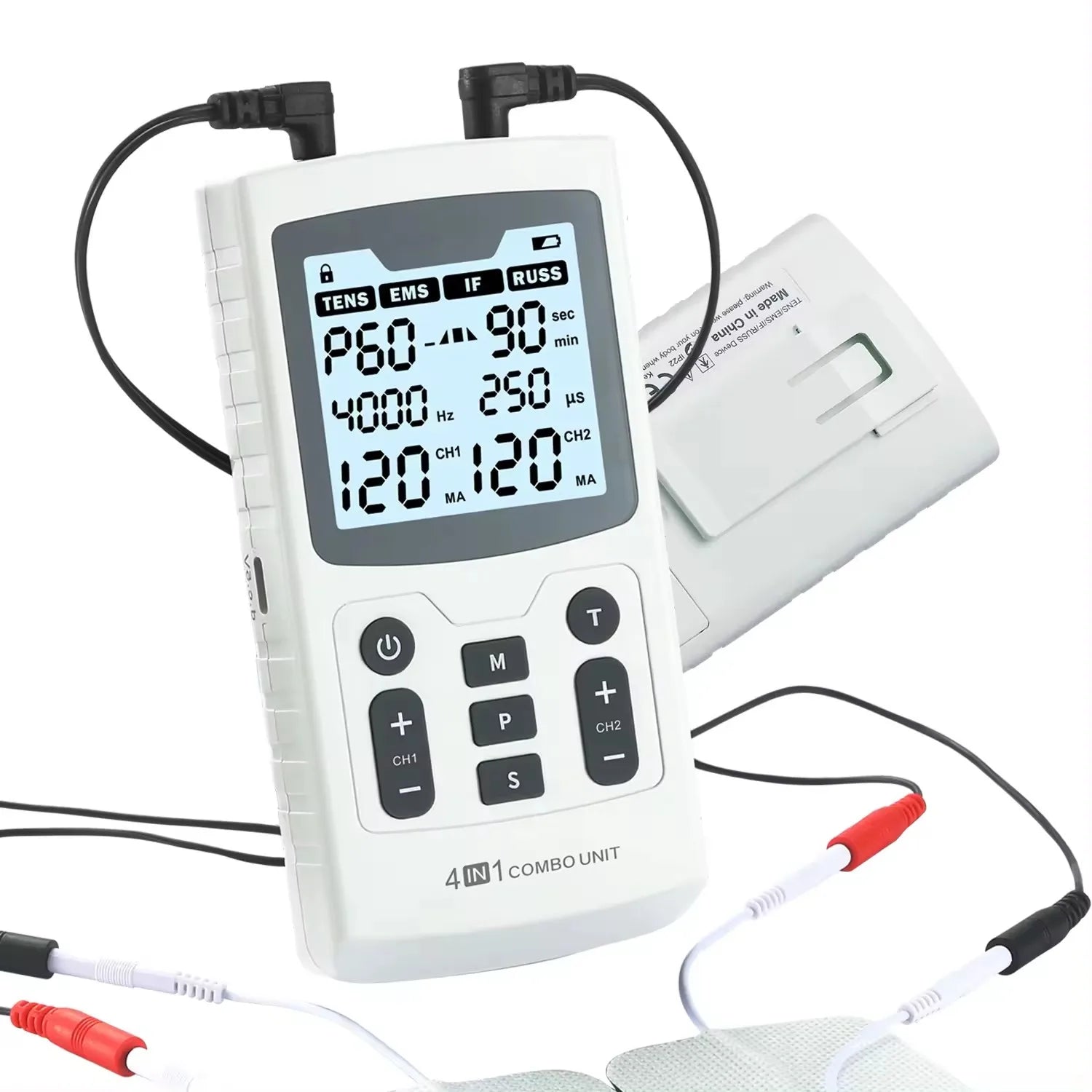

Model: J28NEW

Feature:

Product Advantages：
1. A total of 60 programs(Mode).
2. TENS： 23 fixed + 2 adjustable programs.
3. EMS： 13 fixed + 2 adjustable programs.
4. IF: 8 fixed + 2 adjustable programs.
5. RUSS: 8 fixed + 2 adjustable programs.
6. Adjustable intensity：0 - 120 levels. Max: 120mA.
7. Adjustable working time：5 - 90 minutes. 1min/step.
8. Mode and intensity of the two channels can be controlled separately.

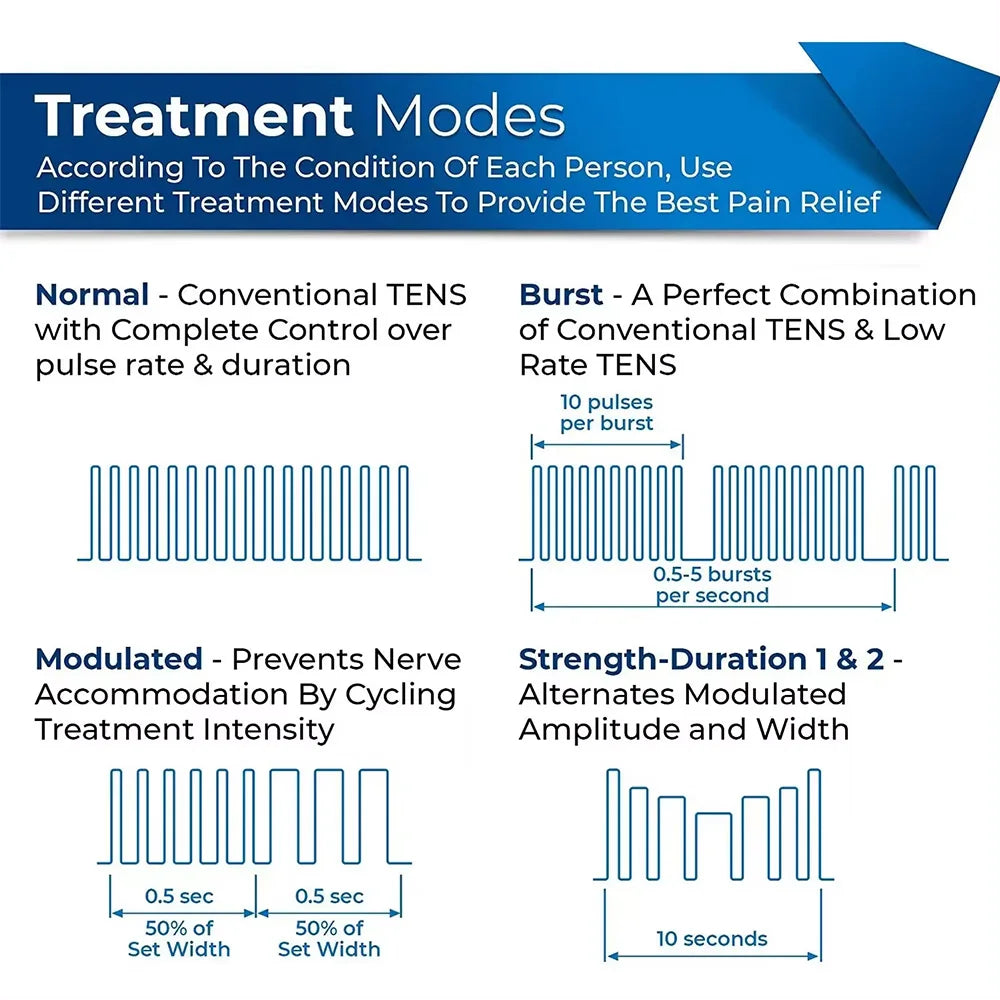

Custom adjustable features
1. Adjustable pulse width and frequency.
2. Adjustable Working time.
3. Adjustable Cycle time.
4. Adjustable Intensity ( 1-120mA).
5. Adjustable Ramp Up/Contraction/Ramp Down / Relaxation (OFF) time.

Customized Programs：

TENS: Adjustable Frequency: 1 Hz - 800 Hz, 1 Hz/step. and Adjustable Pulse width: 50 us - 300 us, 1 us/step.

EMS: 1. Adjustable Frequency: 1 Hz - 800 Hz, 1 Hz/step. 2. Adjustable Pulse width: 50 us - 300 us, 1 us/step.
3. Ramp Up time: Adjustable, from 1 to 9 sec. 4. Contraction Time: Adjustable, from 1 to 60 sec. 5. Ramp Down Time: Adjustable,
from 1 to 9 sec. 6. Relaxation (OFF)time: Adjustable, from 1 to 60 sec.

IF（Interferential Current）.
1. PU 1: Adjustable Frequency: 4000 Hz - 4150 Hz, 1 Hz/step.
2. PU 2 : Adjustable Frequency: 2500 Hz - 2650 Hz, 1 Hz/step.
3. Adjustable Cycle time: from 5 to 60 sec.

RUSS（Russian Stimulation）.
1. PU 1: Adjustable Frequency: 2500 Hz - 2600 Hz, 1 Hz/step.
2. PU 2: Adjustable Frequency: 2000 Hz - 2100 Hz, 1 Hz/step.
2. Adjustable Cycle time: from 5 to 60 sec.

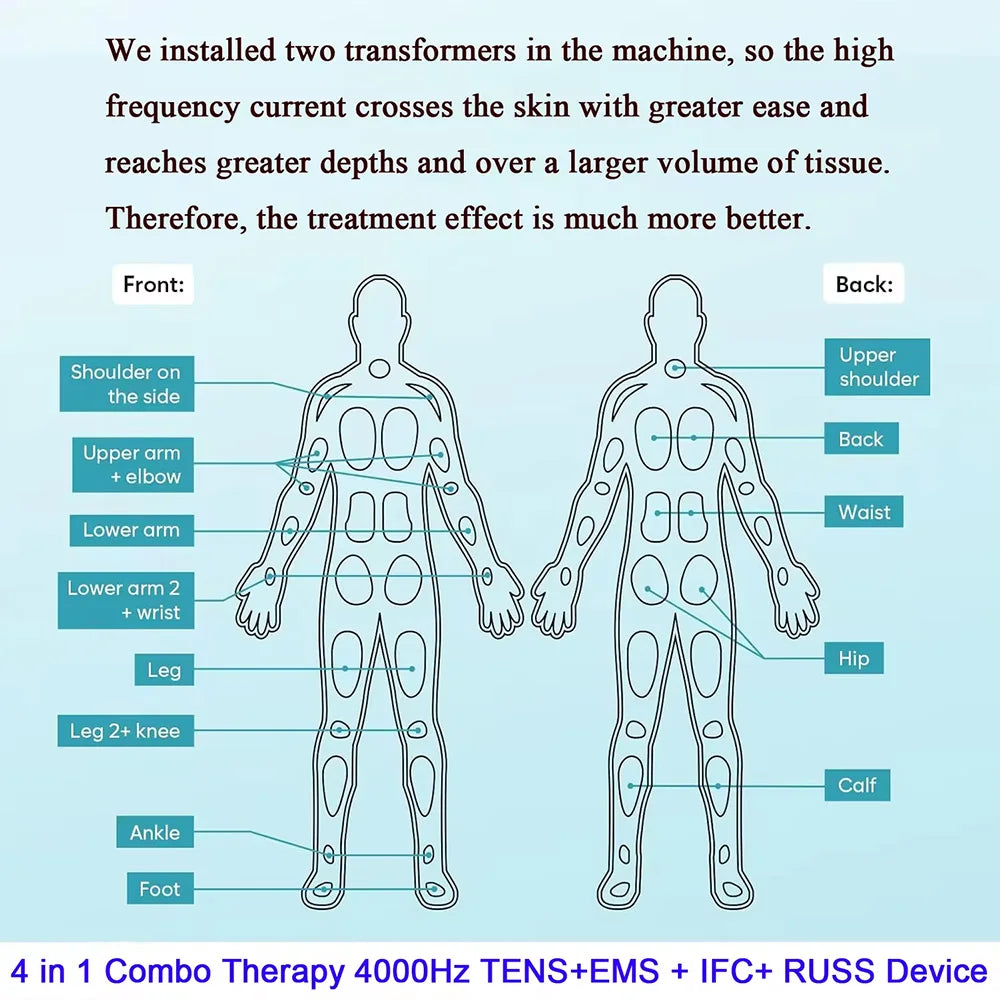

Function：

TENS Function
1. Relieve arthritis pain and nerve pain.
2. Rehabilitation and treatment of post-operative pain.
3. Relieve post-traumatic pain and sciatica pain.
4. Relieve joint pain, chronic intractable pain.
5. Relieve pain in the back, knees, shoulders, ankles, wrists, elbows, etc.
6. Eliminate inflammation and physical fatigue caused by long-term work.?

EMS Function
Suitable for sportspeople: Pre-training warming up and Post-training recovery (Endurance/Maximum strength/Explosive
Strength/Toning).
1. Retarding or preventing muscle atrophy.
2. Relax muscle spasms and reduce muscle soreness.
3. Increase muscle growth and increase local blood circulation。

IF （Interferential Current）
Function: Promote tissue healing, improve circulation to injured tissues, pain relief, relieve muscle spasms, reduce edema, and stimulate deeply situated muscles such as the pelvic floor muscles. chronic intractable pain and post-surgical and post-traumatic acute pain relief.

RUSS （Russian Stimulation）
Function: Strengthening muscles, increasing muscle size, improving muscular endurance, accelerating muscle recovery, and reducing
muscle spasms.
Especially for athletes, such as anterior cruciate ligament (ACL) tears, physical therapy programs to improve strength.

Note: IF is Interferential Current(4000Hz), RUSS is Russian Stimulation(2500Hz). TENS and EMS are low-frequency, IF and RUSS are medium-frequency.
