Wanptek DC Lab Power Supply 32V 62V 120V 160V Adjustable Switching Power Supply with 5V 2A USB Charging Display Regulator
SPECIFICATIONS
Brand Name: wanptek
Model Number: GA3010H
Certification: CE, FCC
Origin: Mainland China
Type: Power Supply
Output Type: Single
Output Current: 0–10A
Output Power: 201–300W
Output Frequency: 50Hz / 60Hz
Rated Capacity: 40–1000VA (including 40VA)
High-Concerned Chemical: None
Customized: No
Choice: Yes
Product Features
To prevent scratches during shipping, a protective film is applied to the screen.

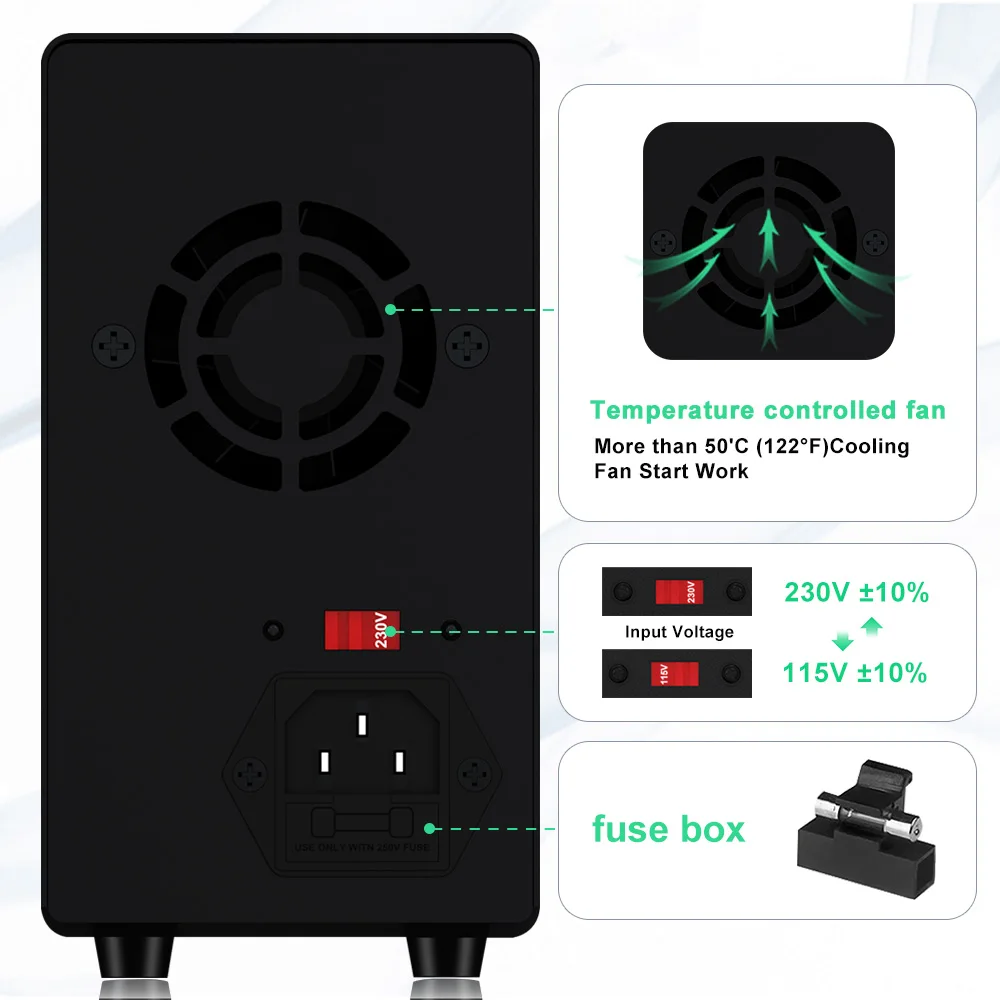

The cooling fan automatically turns on when the internal temperature reaches 50 °C.
The power supply supports dual input voltage. A voltage selection switch is located at the back of the unit and must be set correctly before use.
(Note: Using the wrong voltage may damage the fuse or capacitor.)
Features full protection functions and precise encoder adjustment.
If the power supply does not work upon receipt, please contact us and we will respond promptly.
Product Description

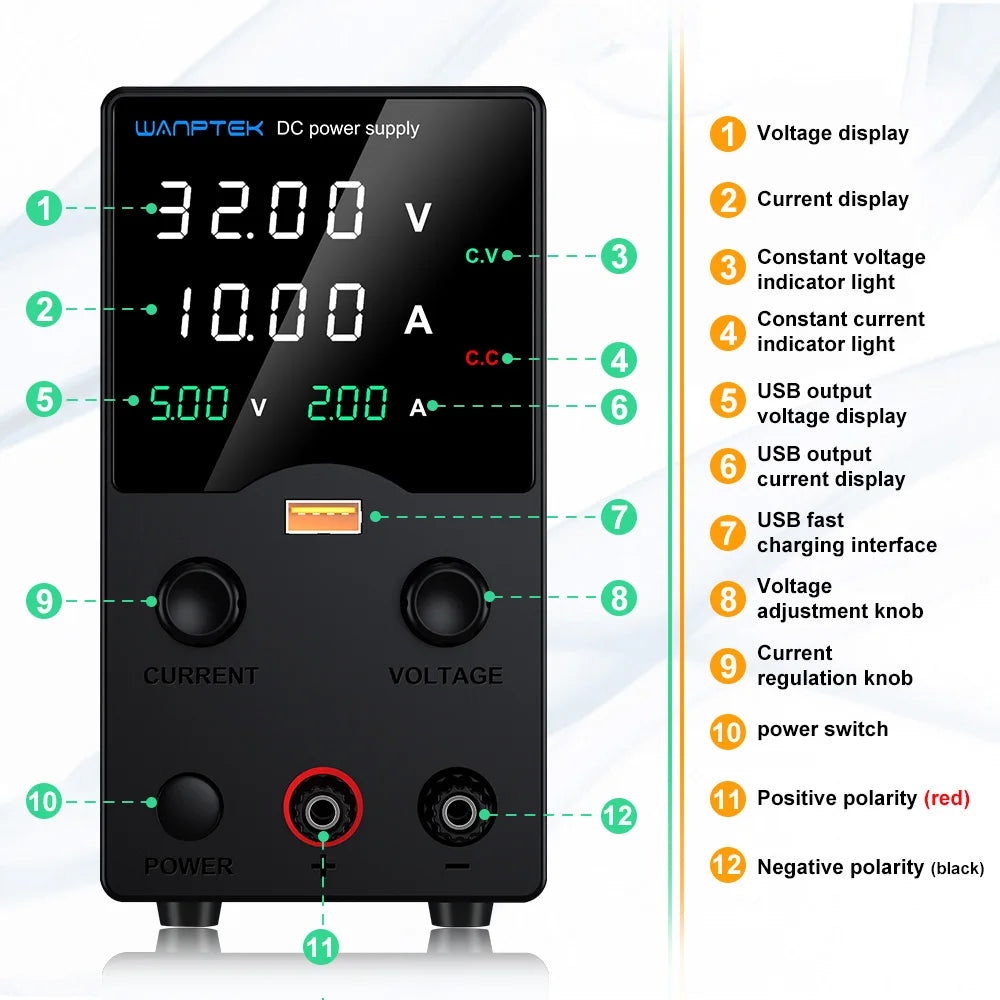

The GA series is a four-window, dual-color digital display switching DC regulated power supply with USB fast-charging output display. It can display voltage and current simultaneously.
This series is widely used for mobile phone repair, computer repair, battery charging, school teaching, and production line applications.

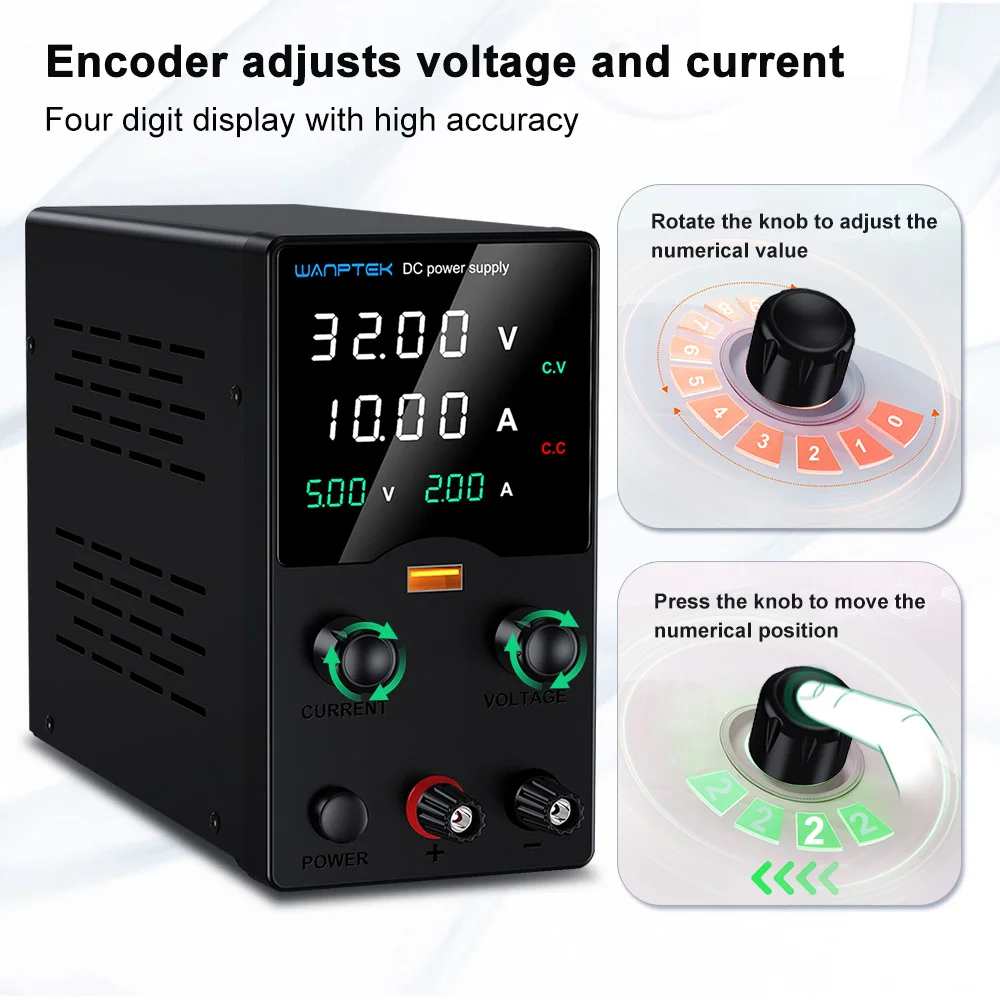

The GA series uses an encoder potentiometer, allowing continuous adjustment of output voltage and current from 0 to the rated value. Preset values can be displayed in advance, making operation simple and precise.
It features a USB fast-charging interface with output display and supports multiple fast-charging protocols. With complete short-circuit protection, excellent stability, low ripple, compact size, lightweight design, and long-term full-load operation, it is highly favored by users.
Key Functions
Encoder potentiometer for precise voltage and current adjustment with preset display.
Overload protection and automatic output shutdown during short circuits.
USB fast-charging interface with output display supporting multiple protocols.
Compact size, lightweight design, and sufficient output power.
Automatic switching between constant voltage (CV) and constant current (CC).
Four-window dual-color display for voltage and current with high accuracy.
Temperature-controlled cooling fan with low noise and long service life.
Technical Parameters
Input Power Supply: AC 115V / 230V ±10%, 50Hz / 60Hz
Operating Temperature: 0 °C–40 °C
Operating Humidity: <80% RH
Storage Temperature: −10 °C–70 °C
Storage Humidity: <70% RH
Voltage Regulation (CV)
Voltage stability: 0.5% ±3mV
Load stability: 0.5% ±3mV
Ripple voltage: ≤0.5% Vp-p
Output voltage continuously adjustable from 0 to rated voltage
Current Regulation (CC)
Current stability: 0.5% ±3mA
Load stability: 0.5% ±3mA
Ripple current: ≤0.5% Vp-p
Recovery time: ≤500μs
Temperature coefficient: ≤100ppm/°C
Output current continuously adjustable from 0 to rated current

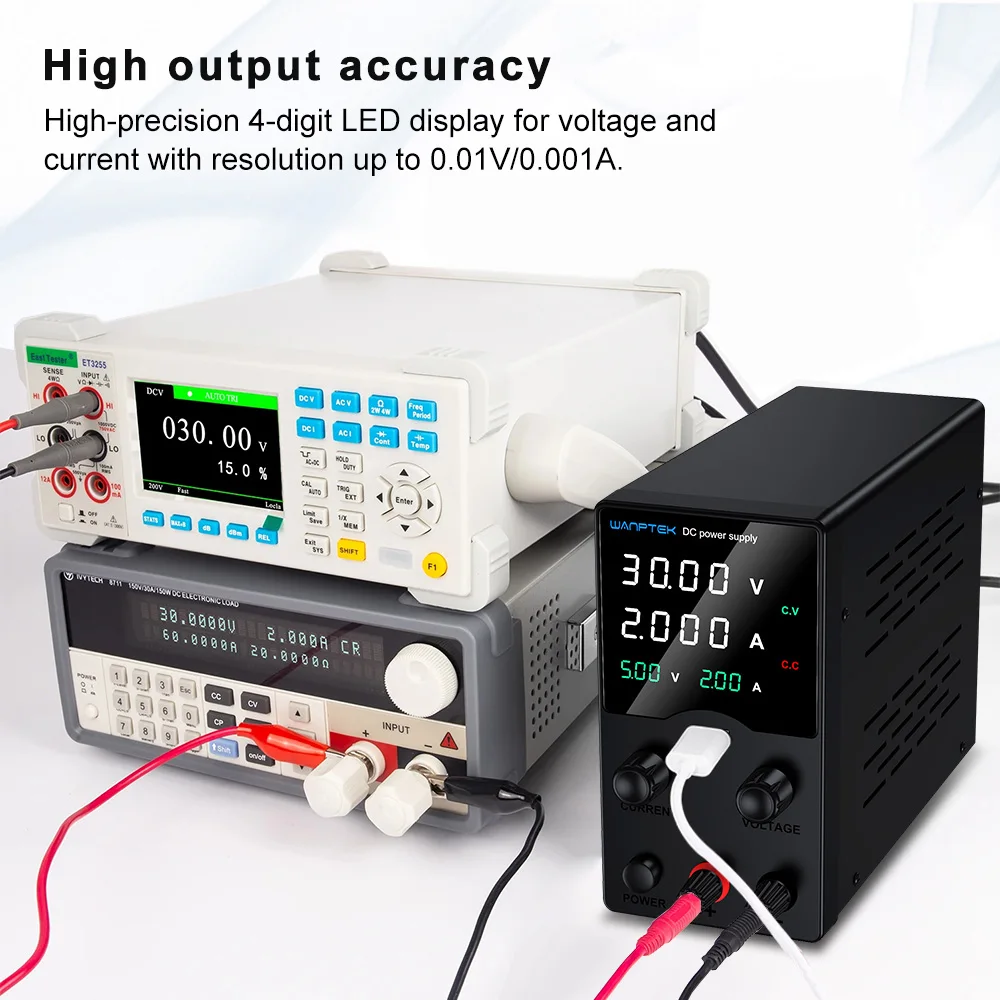

Meter Display
0.4-inch white four-digit display × 2
0.25-inch green three-digit display × 2
Display accuracy: 0.5% ±5 digits
Resolution:
• Voltage: 0.01V
• Current: 0.001A
• USB Voltage: 0.01V
• USB Current: 0.01A
Product Size & Weight

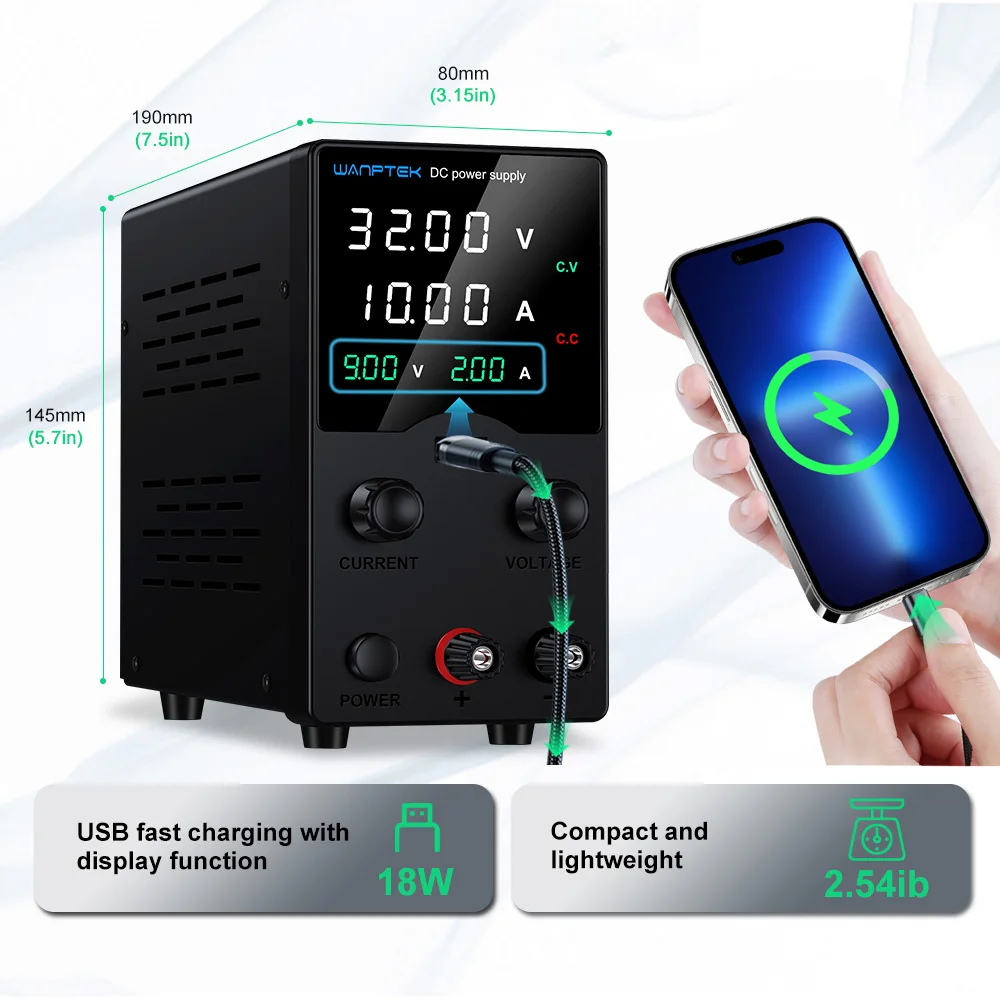

Product Size: 190 × 80 × 145 mm
Package Size: 270 × 116 × 195 mm
Net Weight: 1.15 kg
Gross Weight: 1.5 kg

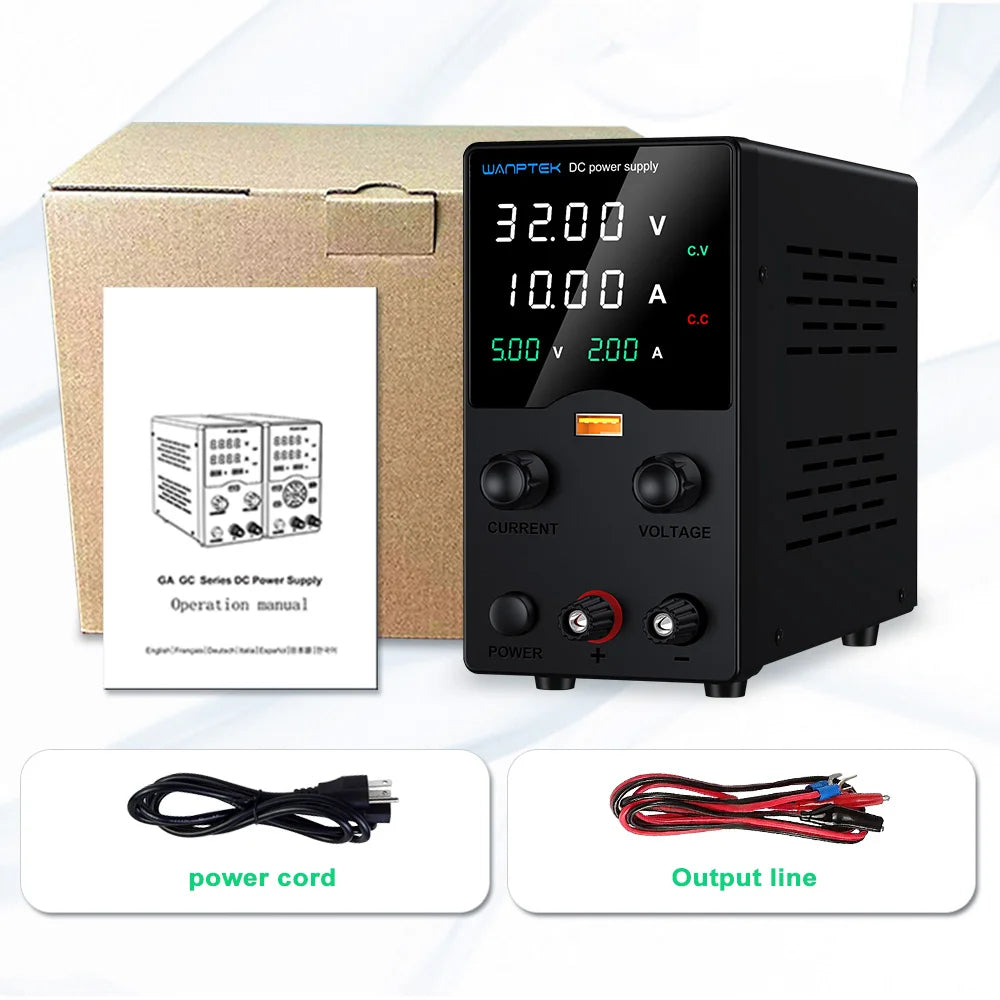

Package Includes
1 × DC Power Supply
1 × Power Cord
1 × Output Cable
1 × Instruction Manual

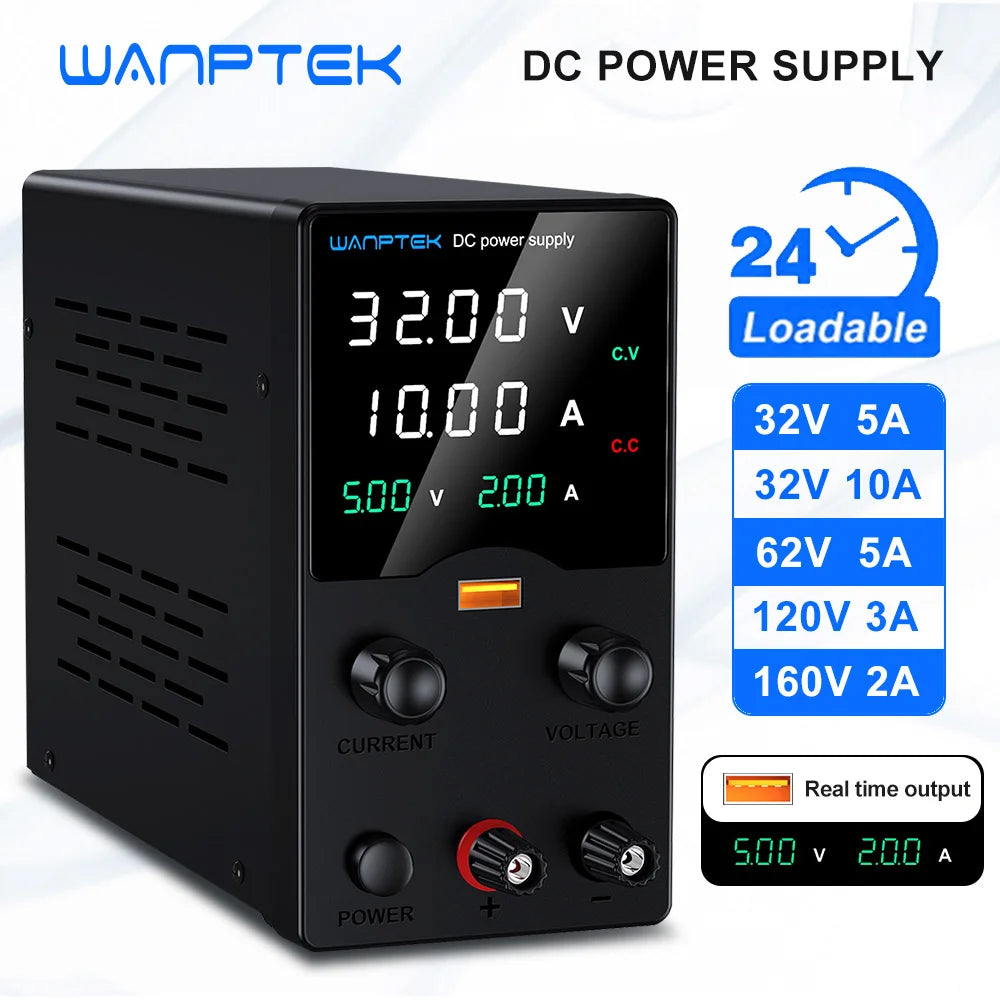

Available Models (5 Options)

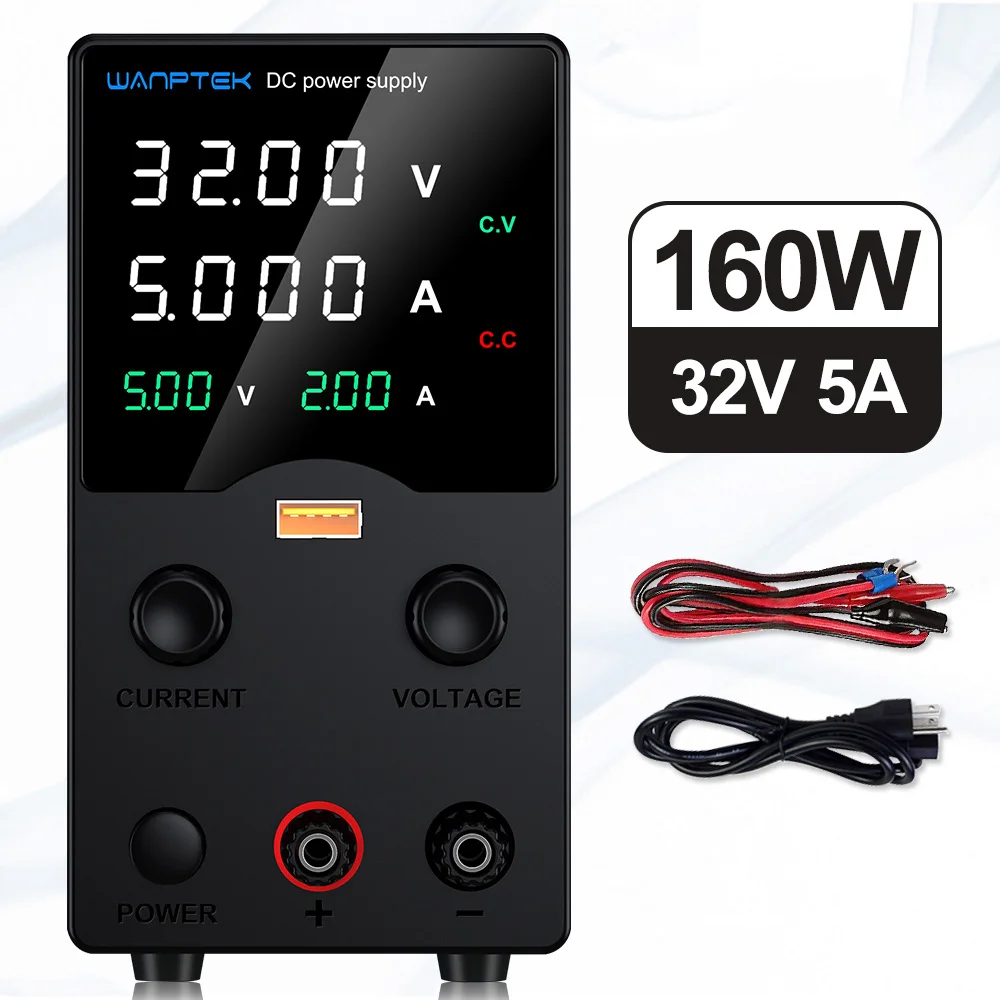

32V 5A — 160W

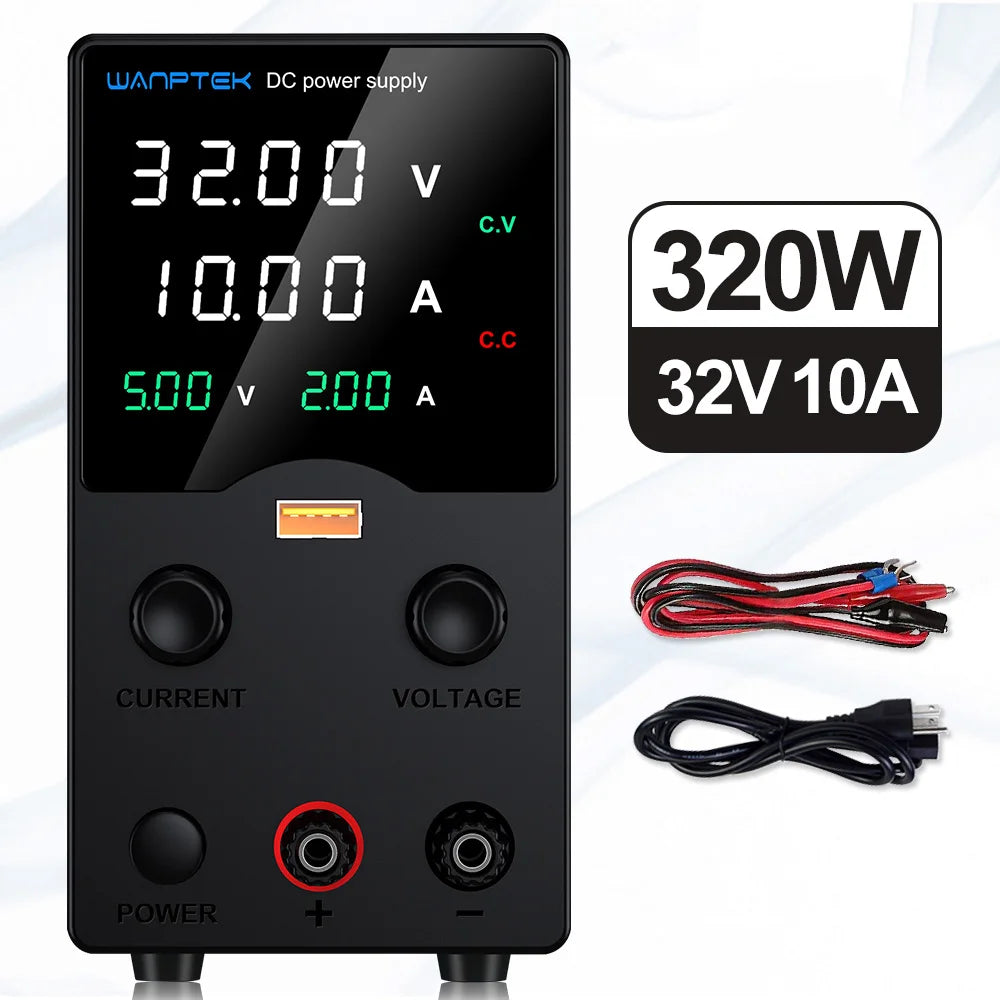

32V 10A — 320W

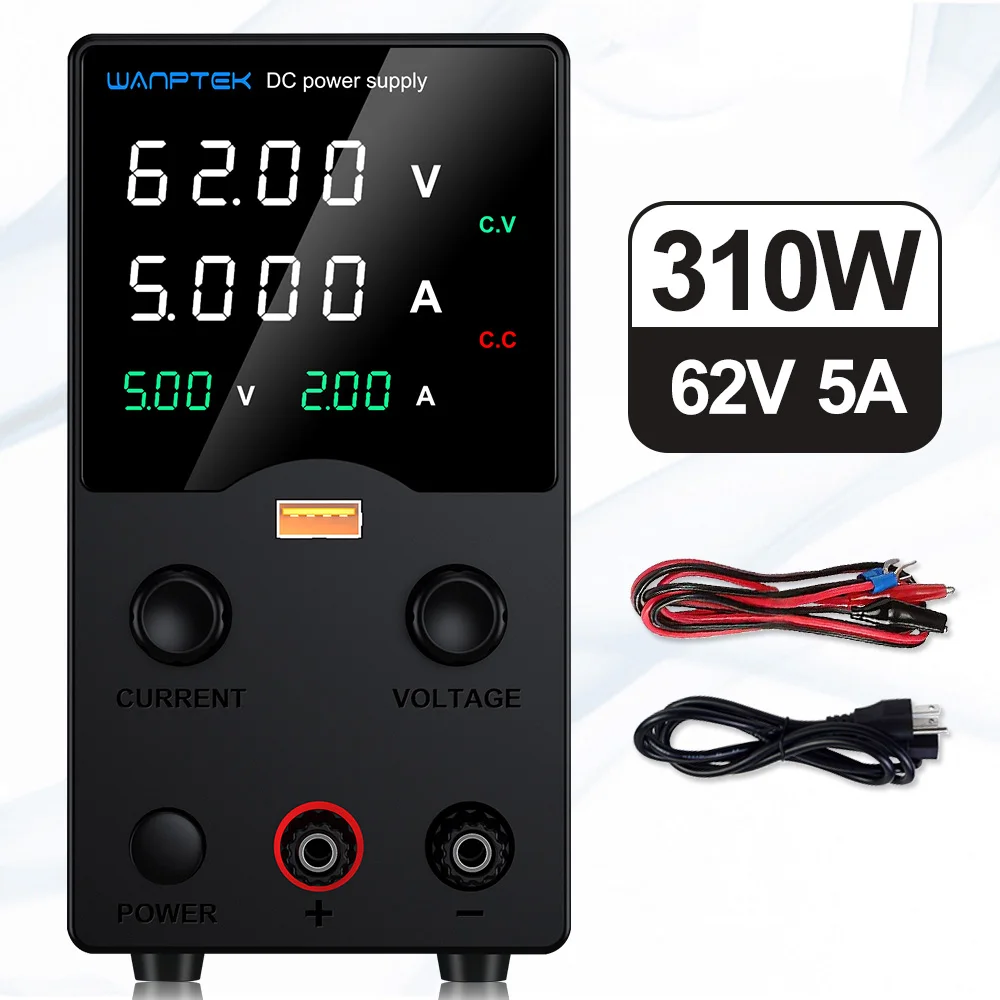

62V 5A — 310W

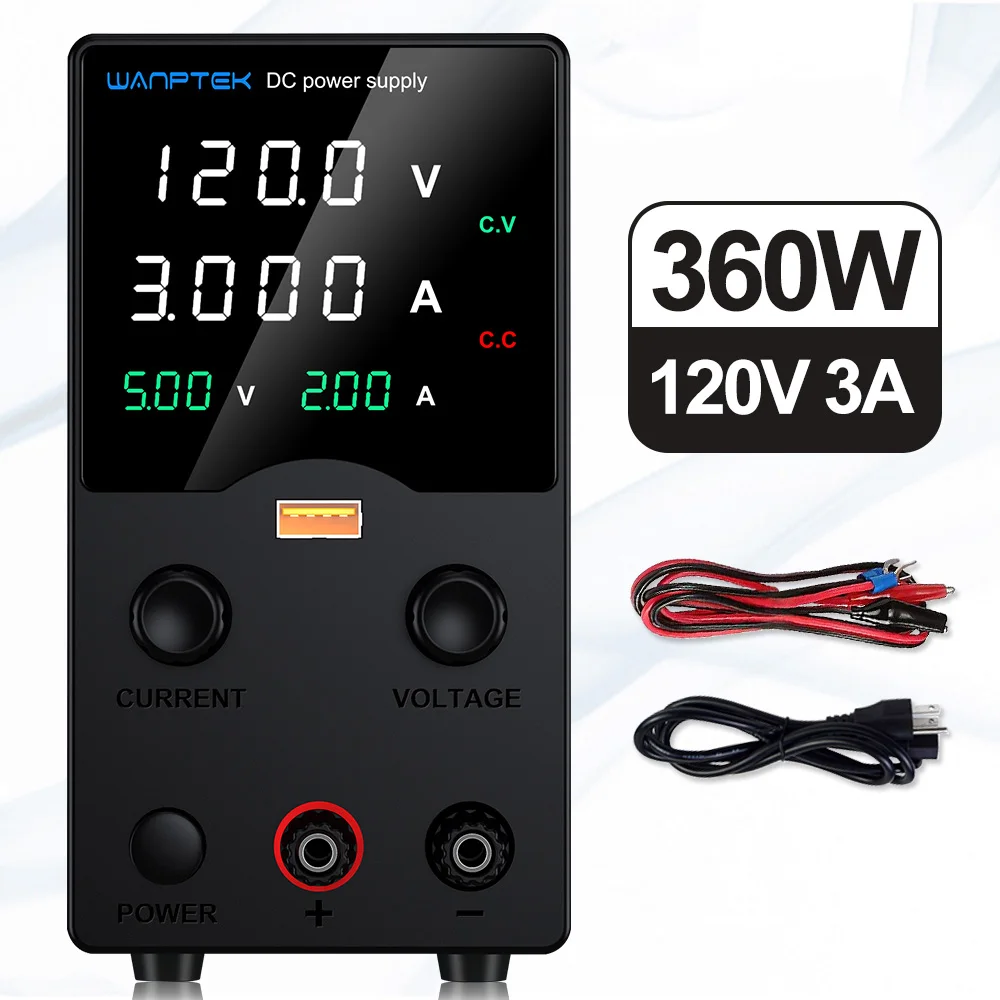

120V 3A — 360W

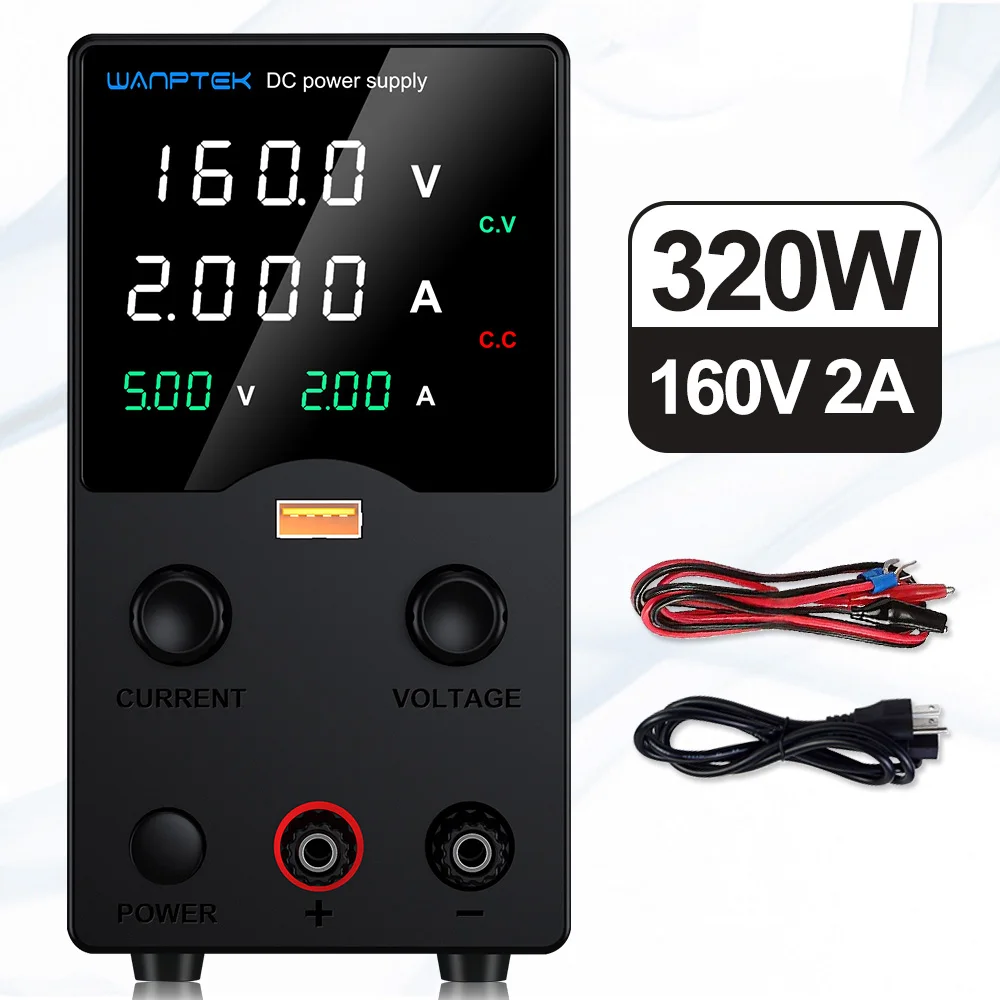

160V 2A — 320W
