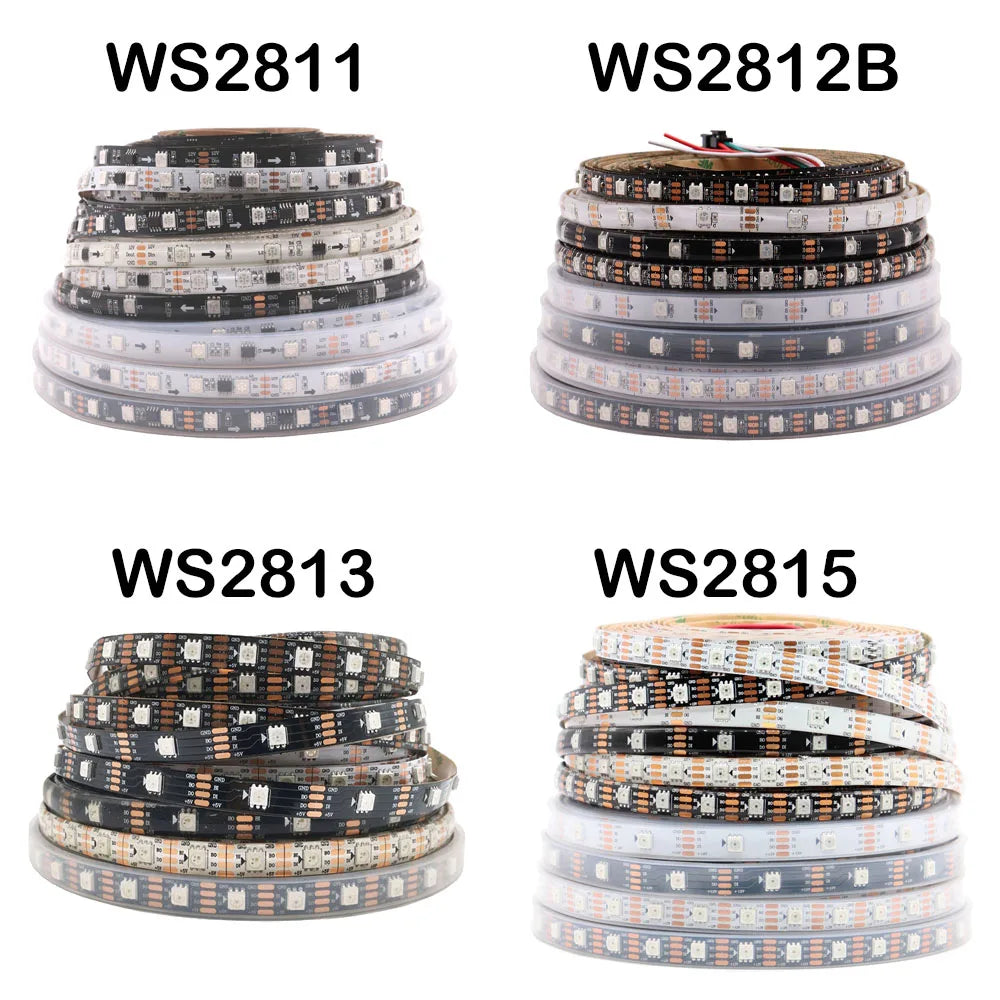

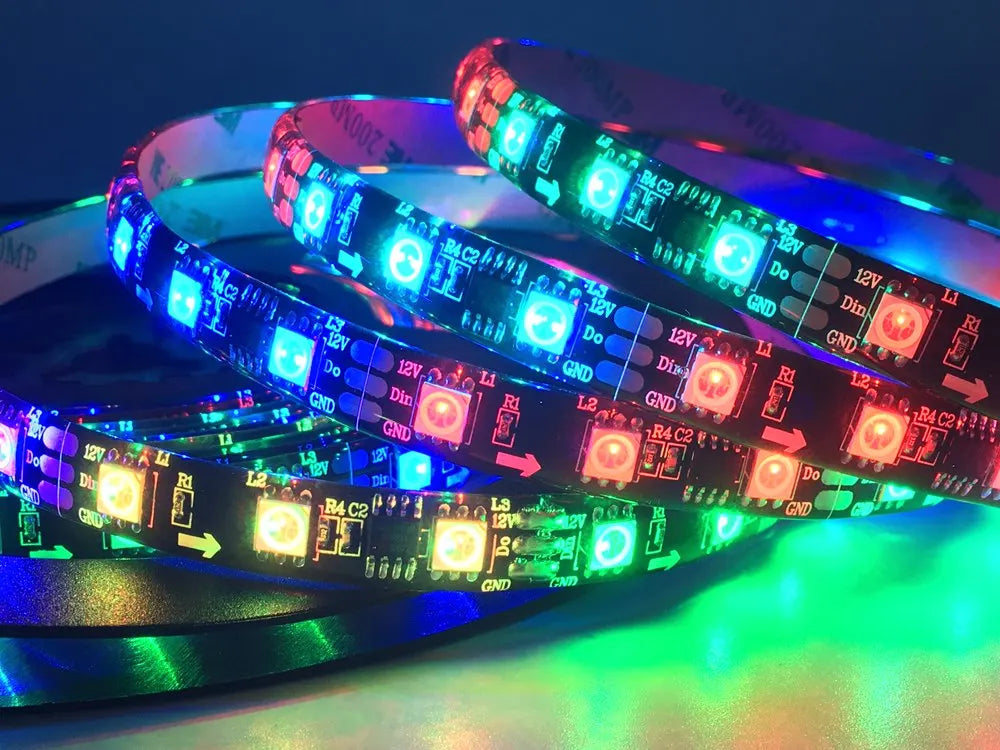

5050 RGBIC Smart LED Strip Individually Addressable IC 30/60/144 Pixels/LEDs per Meter DC5V/12V WS2812B WS2811 WS2813 WS2815
SPECIFICATIONS
Brand Name: Xnbada
Origin: Mainland China
Certification: CCC, CE, FCC, ROHS
Average Life (hrs): More than 50,000 hours
LED Chip Model: SMD5050
Strip Type: SMD
Power Generation: Switch
Waterproof: Yes
Is Smart Device: Yes
Color Temperature (K): 2200-6500K
Occasion: Living Room
LED Chip Brand: Epistar
Power Source: DC
Model Numbers: WS2811, WS2812B, WS2813, WS2815
Specifications (light beads/m): 50
LEDs per Meter: 30/60/144 LEDs/m
Item Type: Strip
Power Consumption: 5.76W/m, 11.52W/m
Voltage: WS2811 - DC12V, WS2812B - DC5V, WS2813 - DC5V, WS2815 - DC12V
Models: WS2812, WS2812B, WS2813, WS2815, WS2811
Choice: Yes
Semi-Choice: Yes

Important Notice:
- LED strips may be welded at 0.5m intervals. This is standard practice for electronic products and does not indicate a quality issue. If this is a concern, please refrain from placing an order.

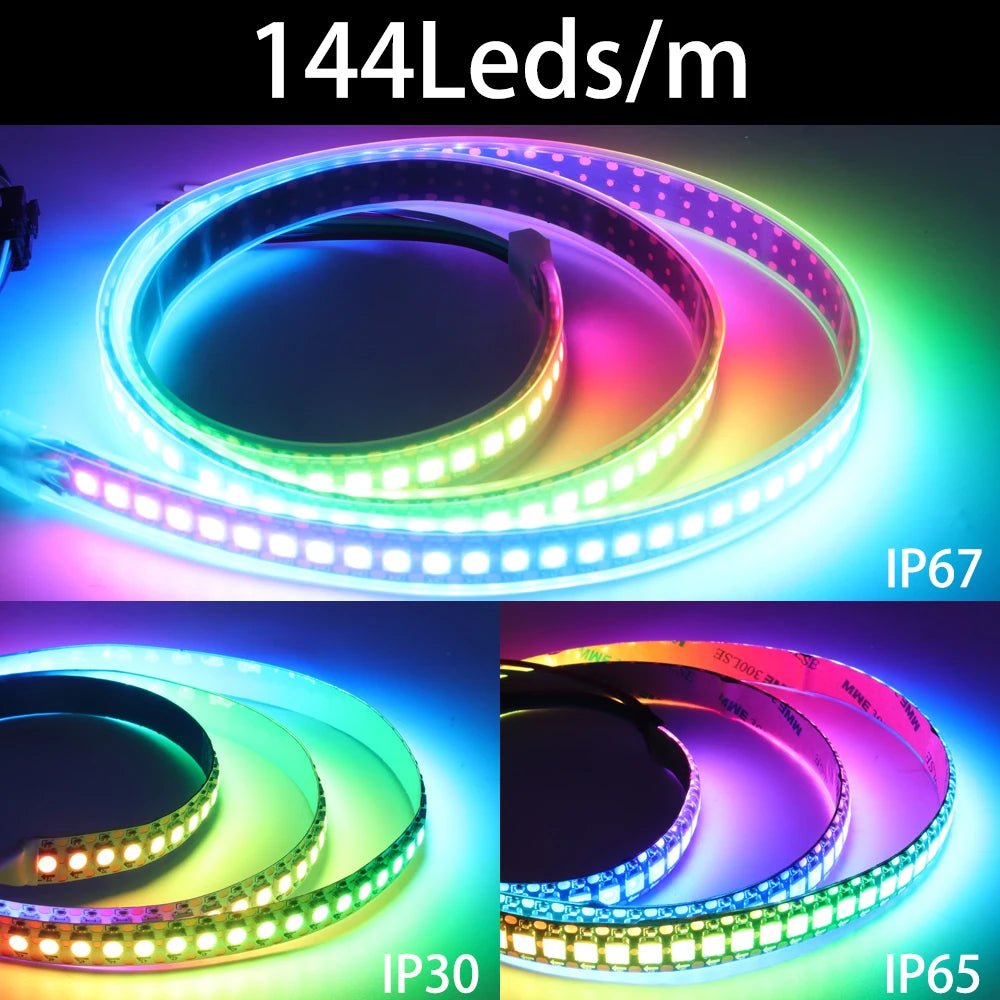

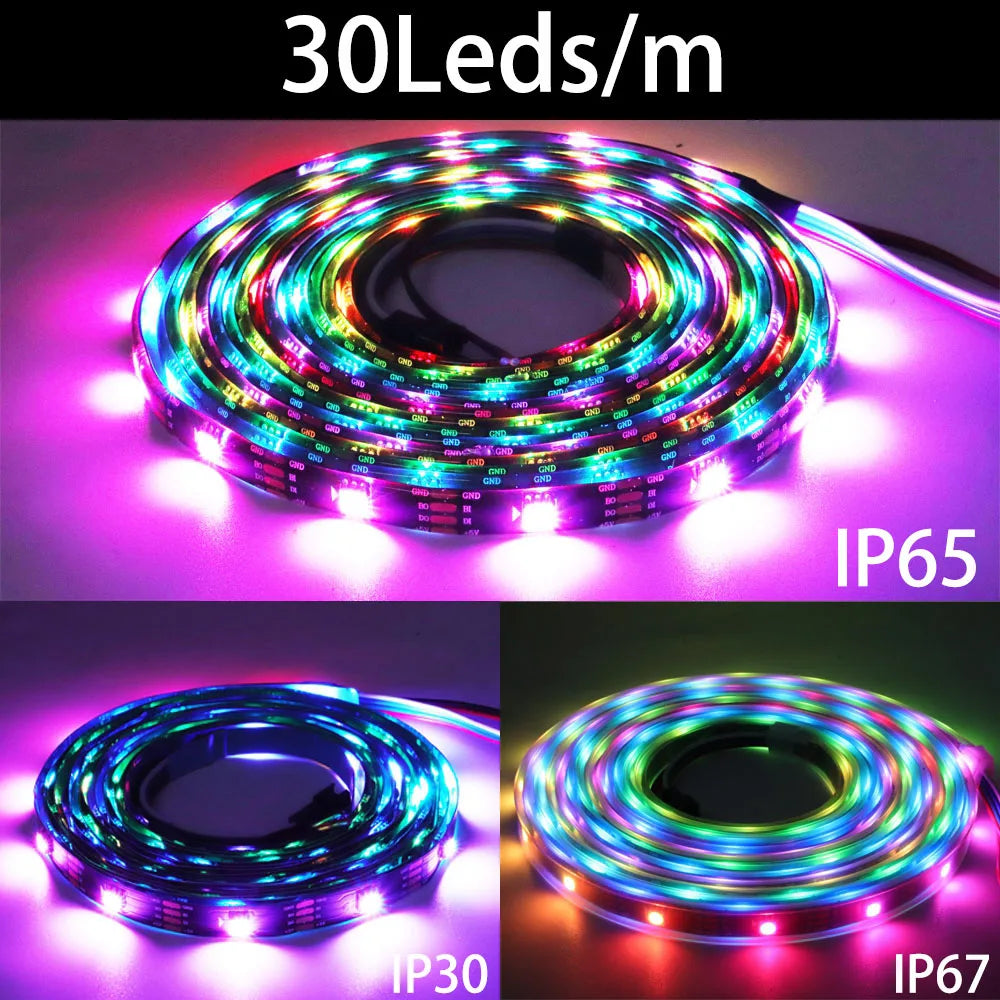

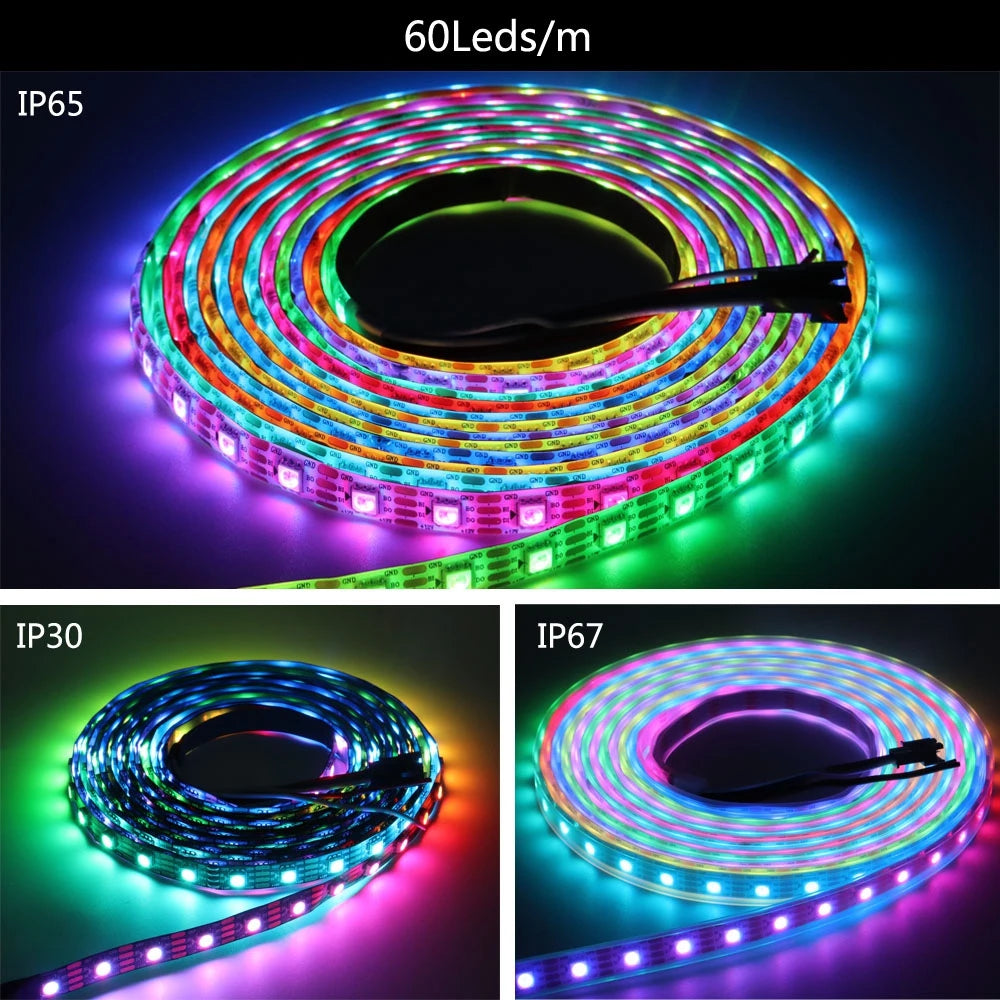

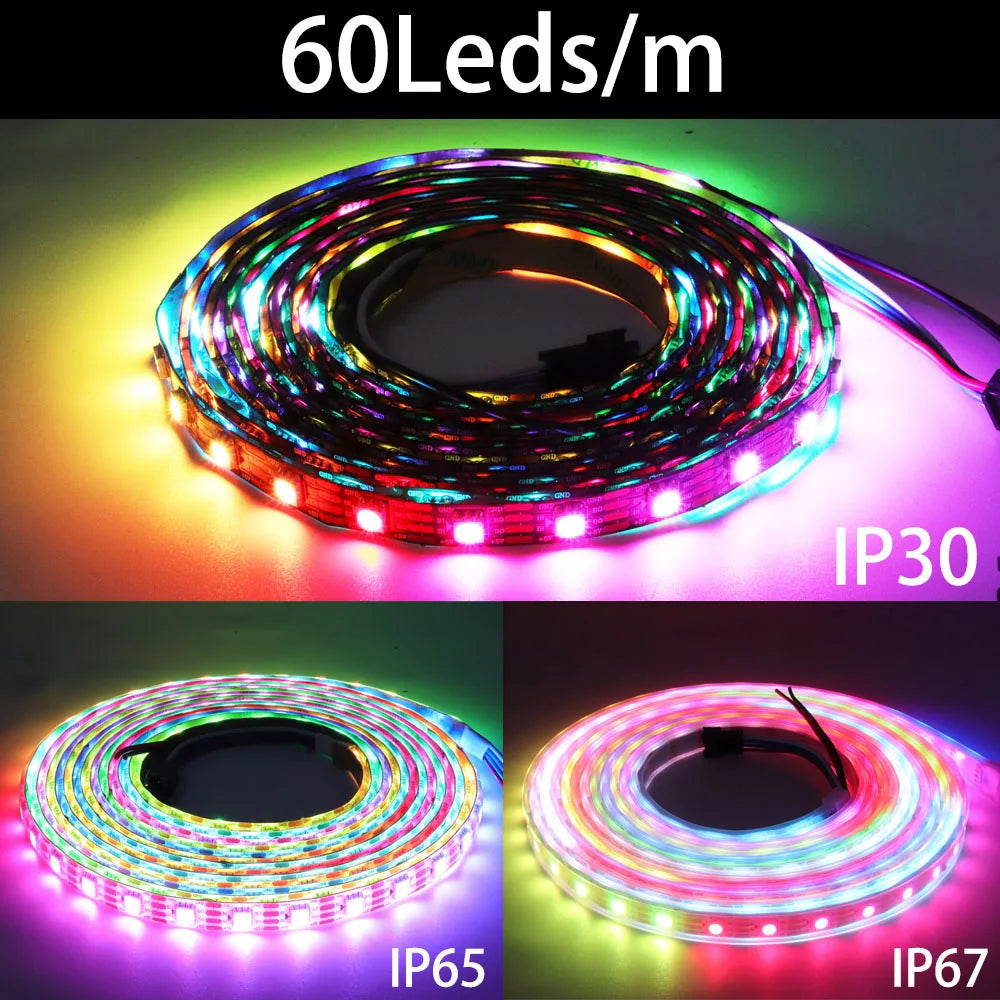

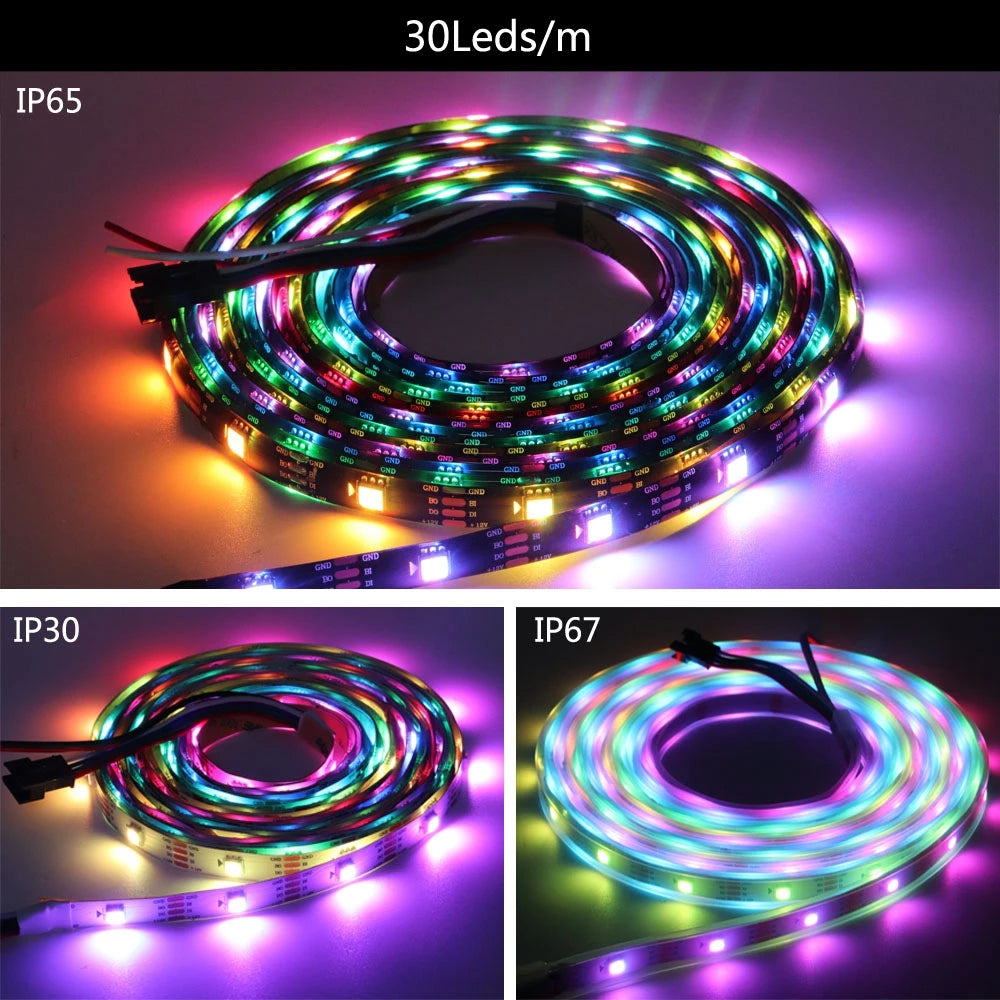

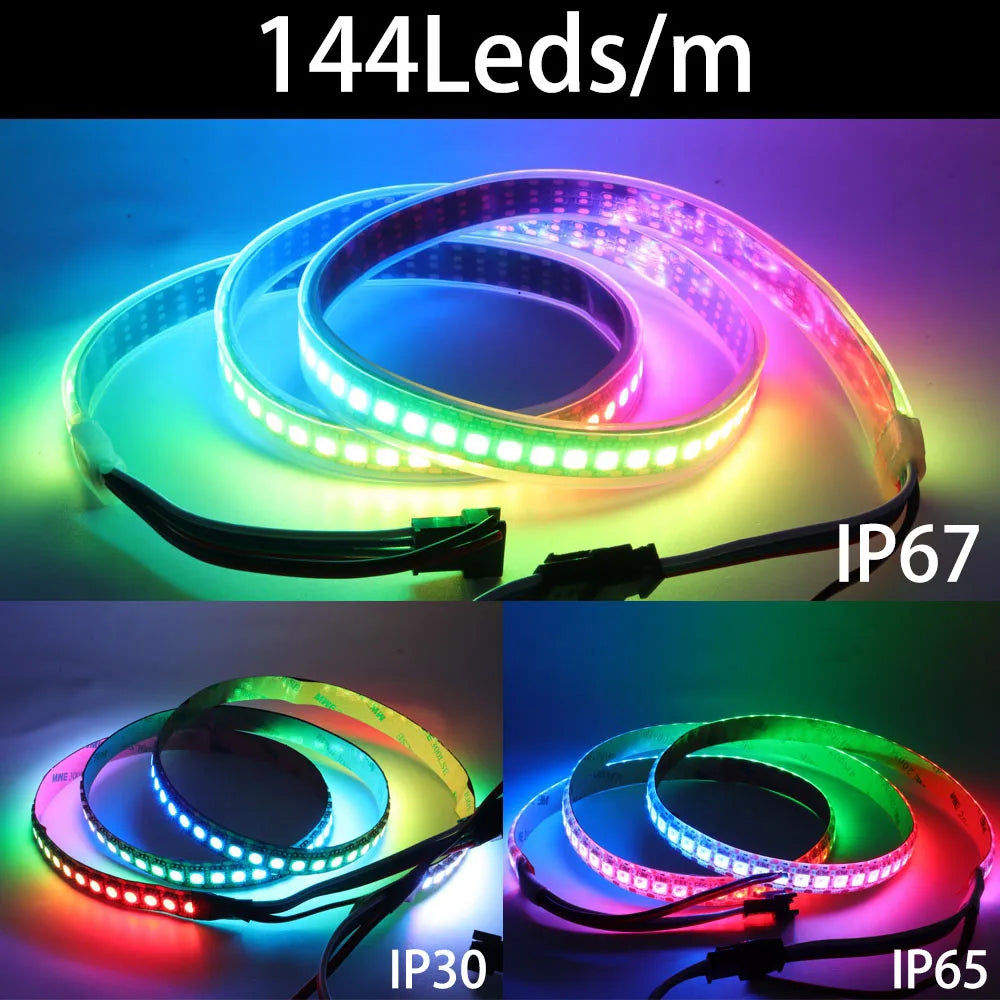

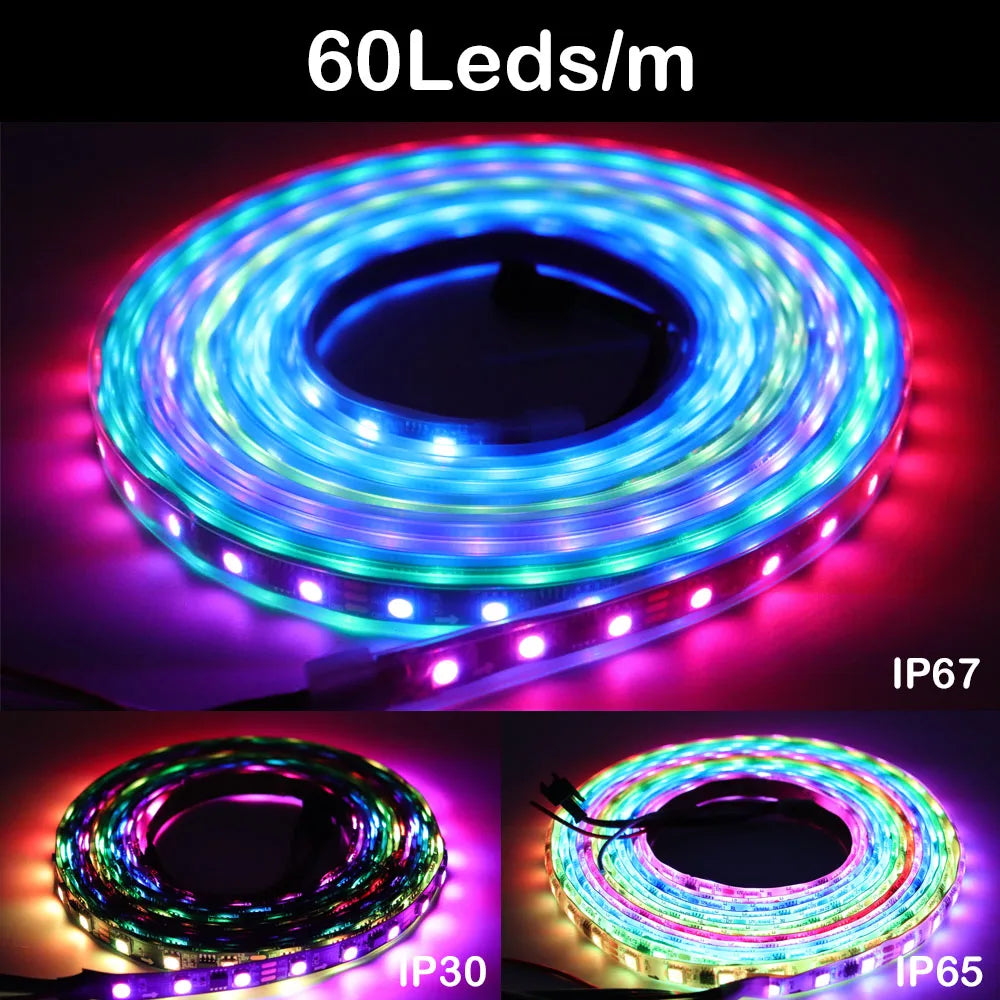

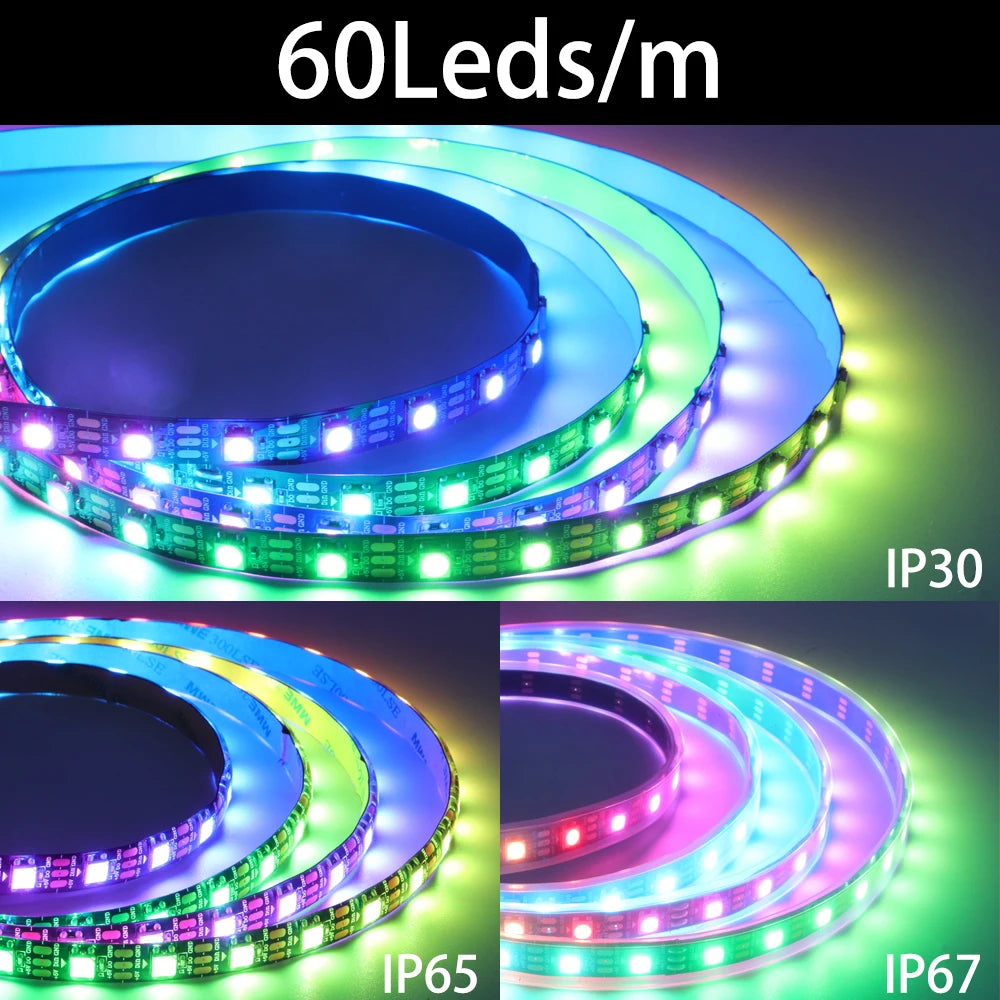

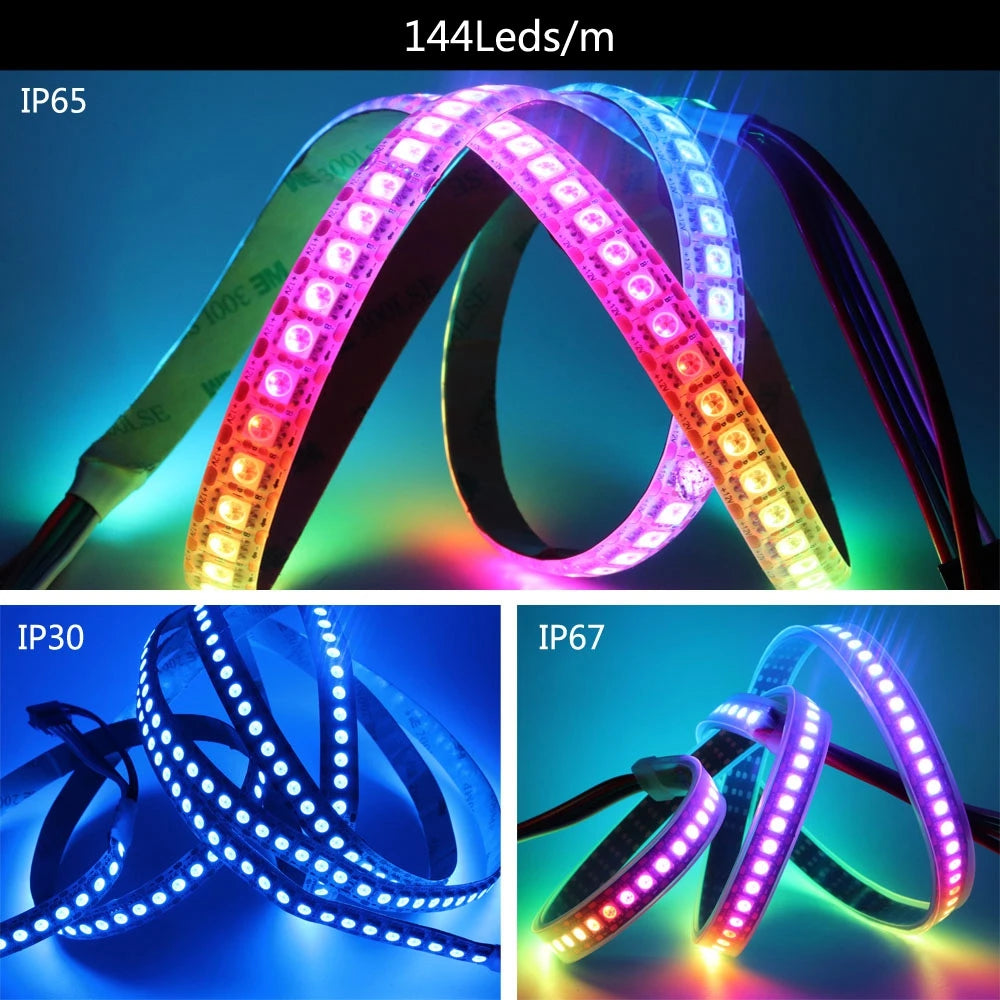

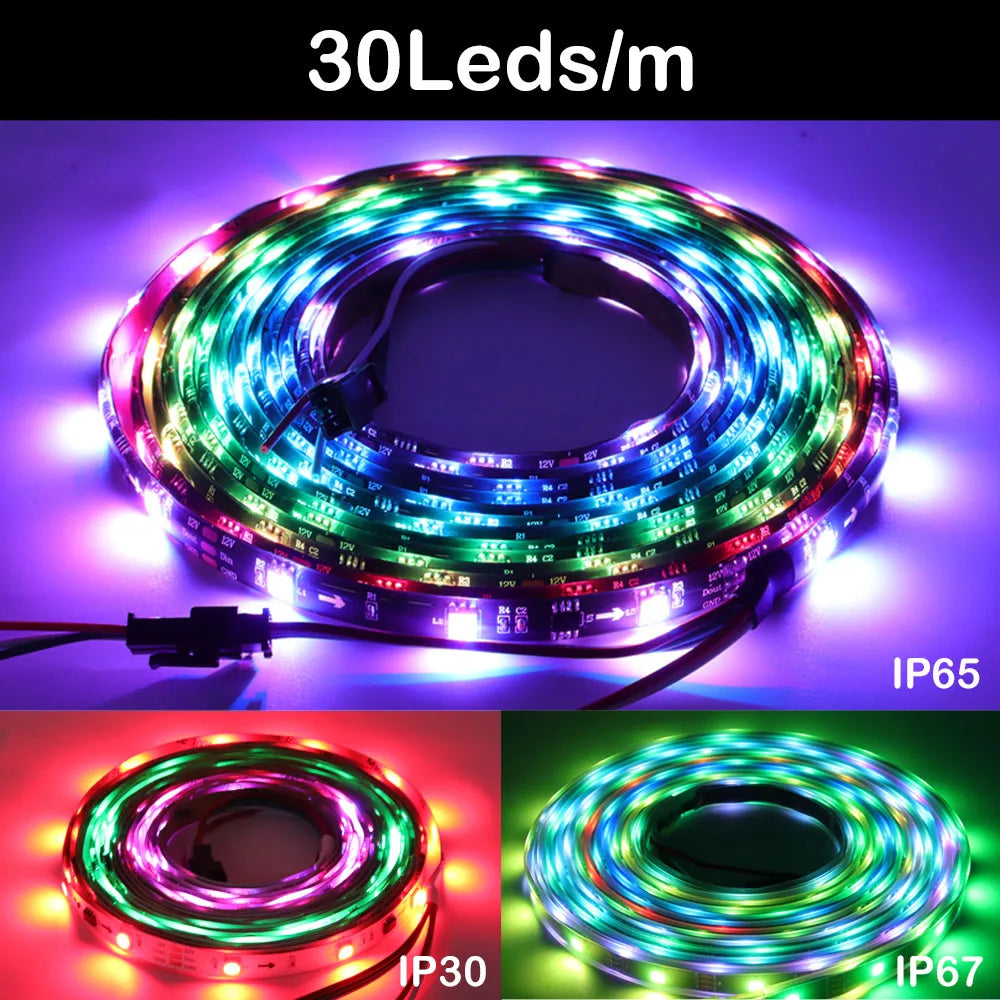

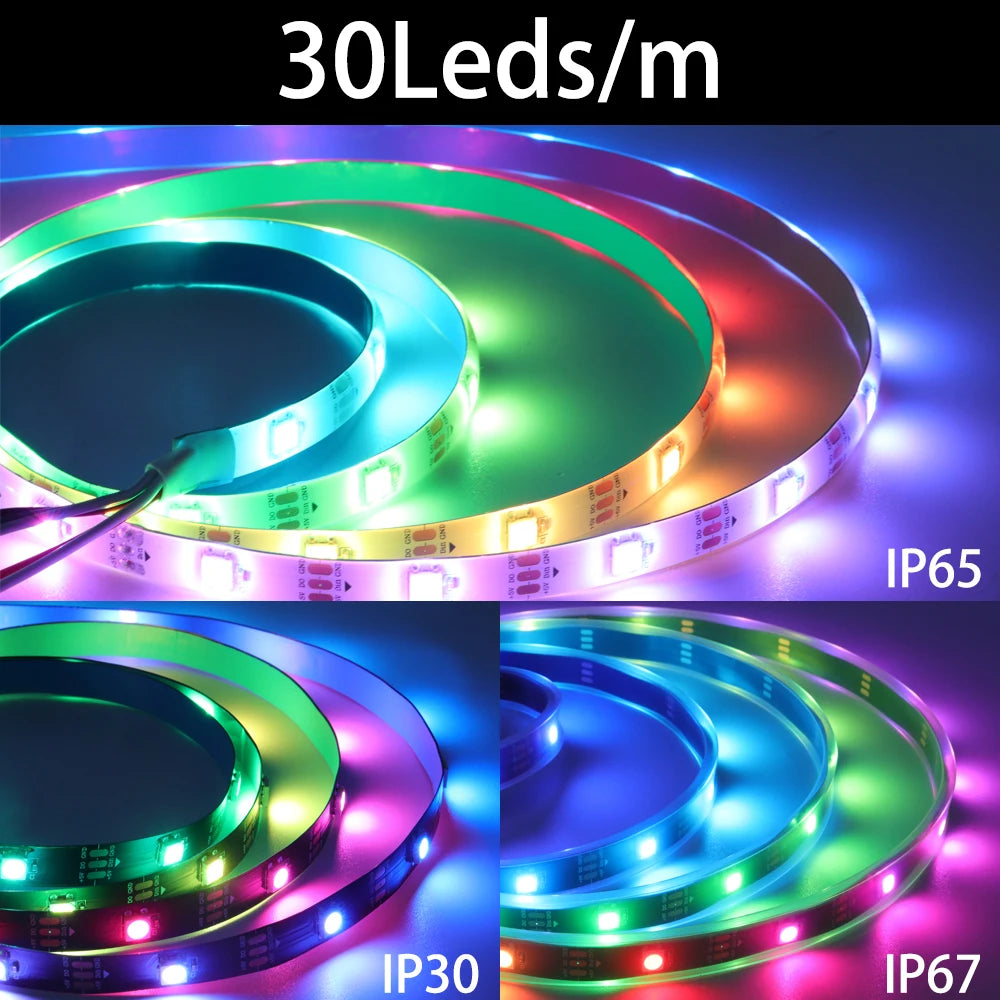

- Protection Ratings:
-
IP30: Non-waterproof
-
IP65: Waterproof with silicone coating
-
IP67: Waterproof with silicone tube
- Voltage Requirements:
-
WS2812B / WS2813: Requires a DC5V LED power supply
-
WS2811 / WS2815: Requires a DC12V LED power supply
Note: This listing does not include a power supply or LED controller. Please be aware before purchasing.

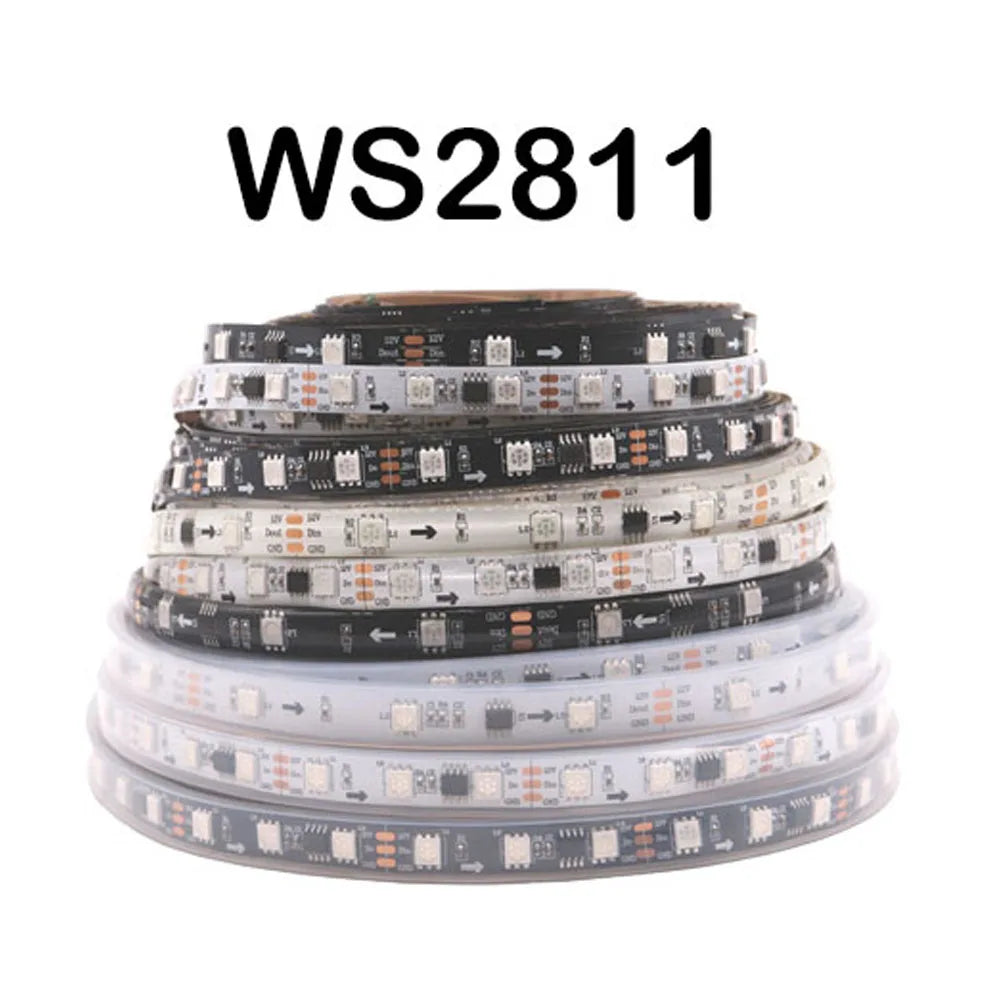

WS2811 LED Strip:
(1) Working Voltage: DC 12V
(2) LED Source: SMD 5050 RGB
(3) LED Chip: Epistar
(4) LED QTY: 30/60 LED / M
(5) IC QTY: 10/20M
(6) Power: 9/18W /M
(7) Greyscale: 256 / Color
(8) Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)
(9) Beam Angle: 120 °
(10) Color Mode: 133Pattern & 100 Speeds
(11) IP Grade: ip30 non -waterproof / ip67 waterproof
(12) Dimension: 5000 x 10 x 2.4mm
(13) Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector
(14) Warranty: 2Years

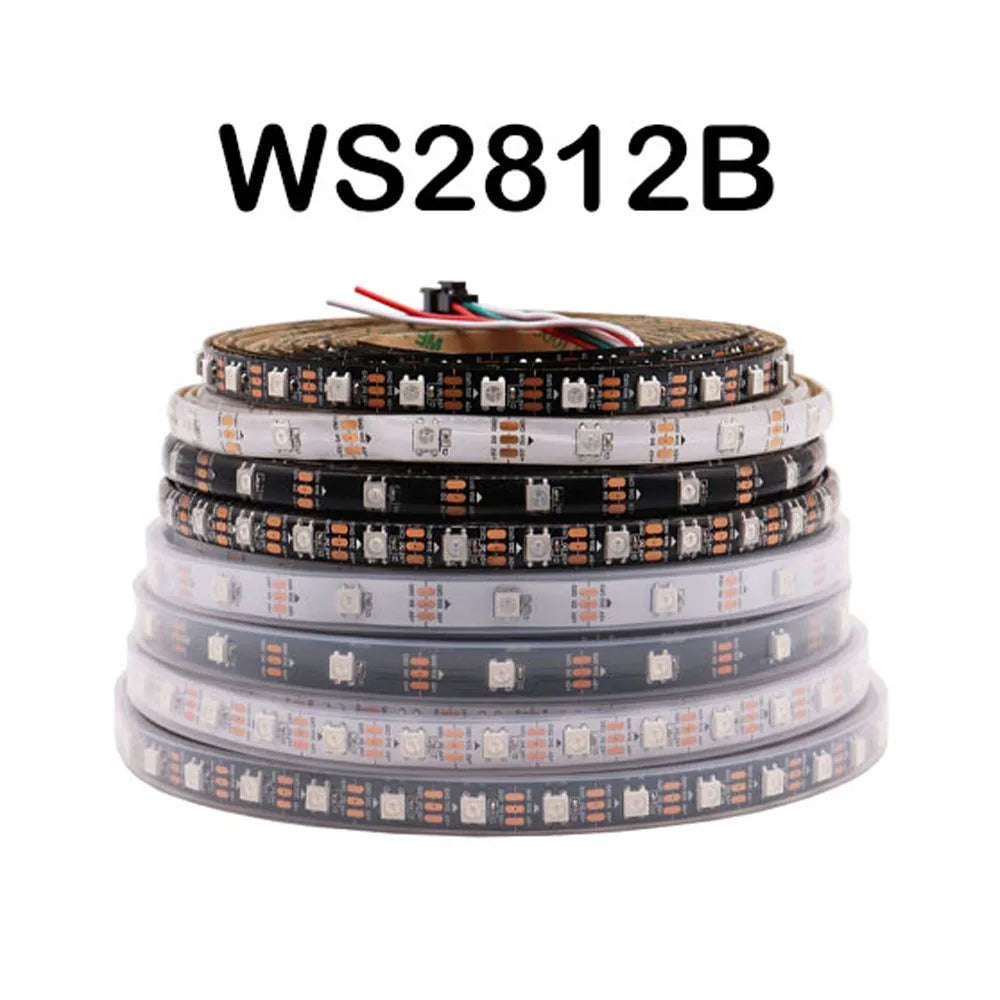

WS2812 LED Strip:
Input Voltage: DC5V
Power:
30Leds/m----9Watt/meter
60Leds/m----18Watt/meter
144Leds/m----43.2Watt/meter
LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip
Pixels: 30/60/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color
FPC Width:
30Leds/m----10mm
60Leds/m----10mm
144Leds/m----12mm
FPC color: Black/White
Protection Rate: IP30/ IP65 /IP67
Colors: Full-Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhesive Tape On The Back(IP67 Without 3M Adhesive)

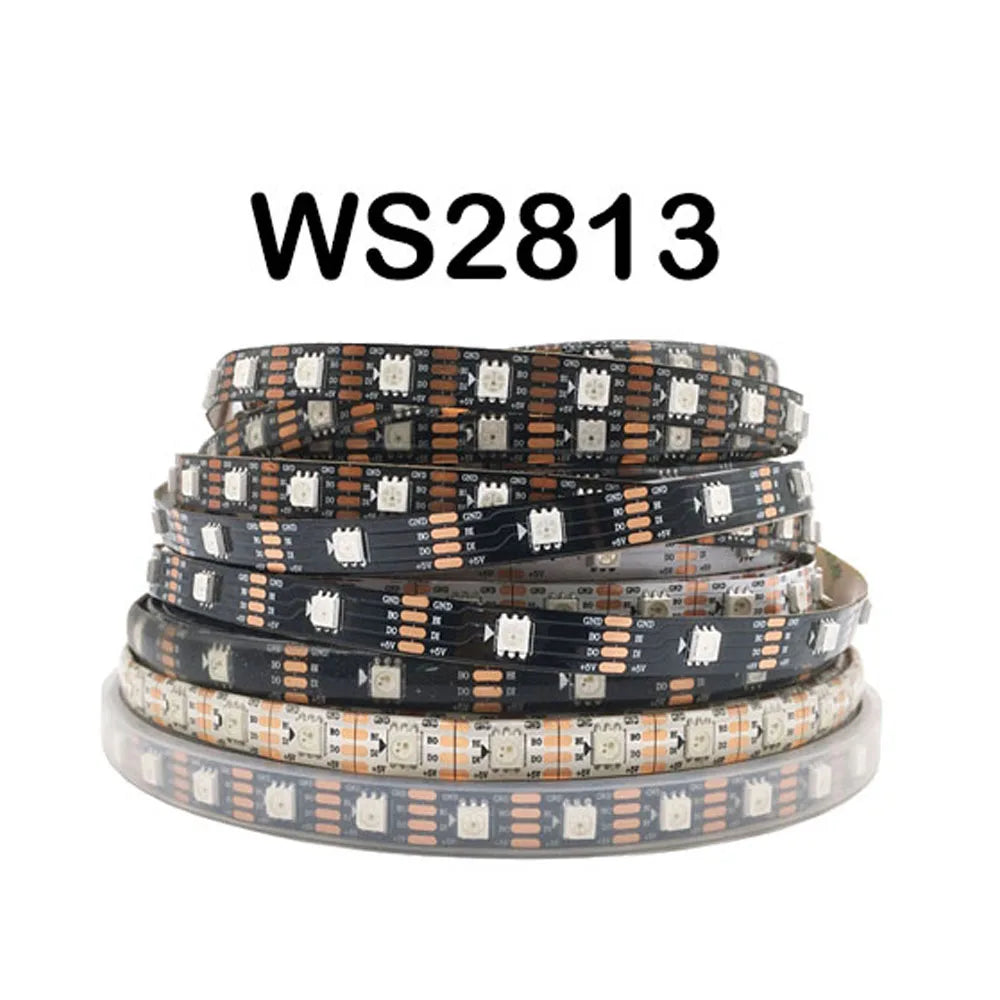

WS2813 LED Strip:
Input Voltage: DC5V
Power: 30 LEDs/m — 9 Watts/meter / 60 LEDs/m — 18 Watts/meter / 144 LEDs/m — 43.2 Watts/meter
LED Resource: WS2813 LED (5050 SMD RGB LED with built-in improved version of WS2811 IC)
LED: Each LED is separately controlled
IC Type: Improved version WS2813 IC (built inside the 5050 SMD RGB LED)
IC Details: 1 IC drives 1 LED chip
Pixels: 30 LEDs/60 LEDs/144 LEDs per meter
Pitch: 16.6mm (1000/64)
Gray Scale: 256
Colors: Full-color RGB, dream color changing
Bits/Color: 8 bits/color
FPC Color: Black/White
FPC Width: 30 LEDs/m — 10mm / 60 LEDs/m — 10mm / 144 LEDs/m — 12mm
Protection Rate: IP30 Non-Waterproof / IP65 Waterproof with Silicone Coating / IP67 Waterproof with Silicone Tube
Cuttable: Every LED is cuttable
Package: In anti-static bag, IP30/IP65 with 3M adhesive tape on the back (IP67 without 3M adhesive), each strip includes one free male connector
Working Temperature: -40°C to 70°C
Storage Temperature: -50°C to 80°C
Source Life: 50,000 hours

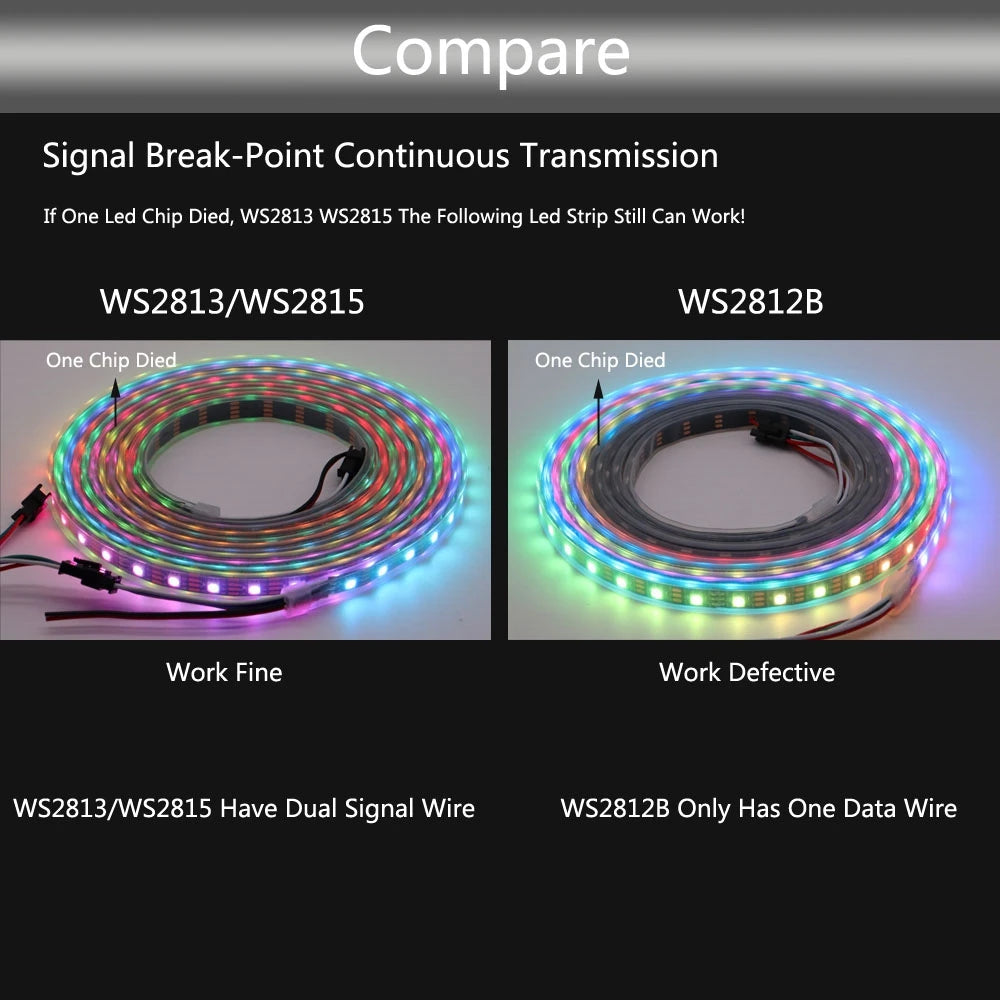

Connector: 4-pin connector terminal pair (Red: 5V power, Green: Data line, Blue: Standby data line, Black: GND)
Recommended Controllers: T-1000S, T-8000A, T-100K, T-200K, T-300K

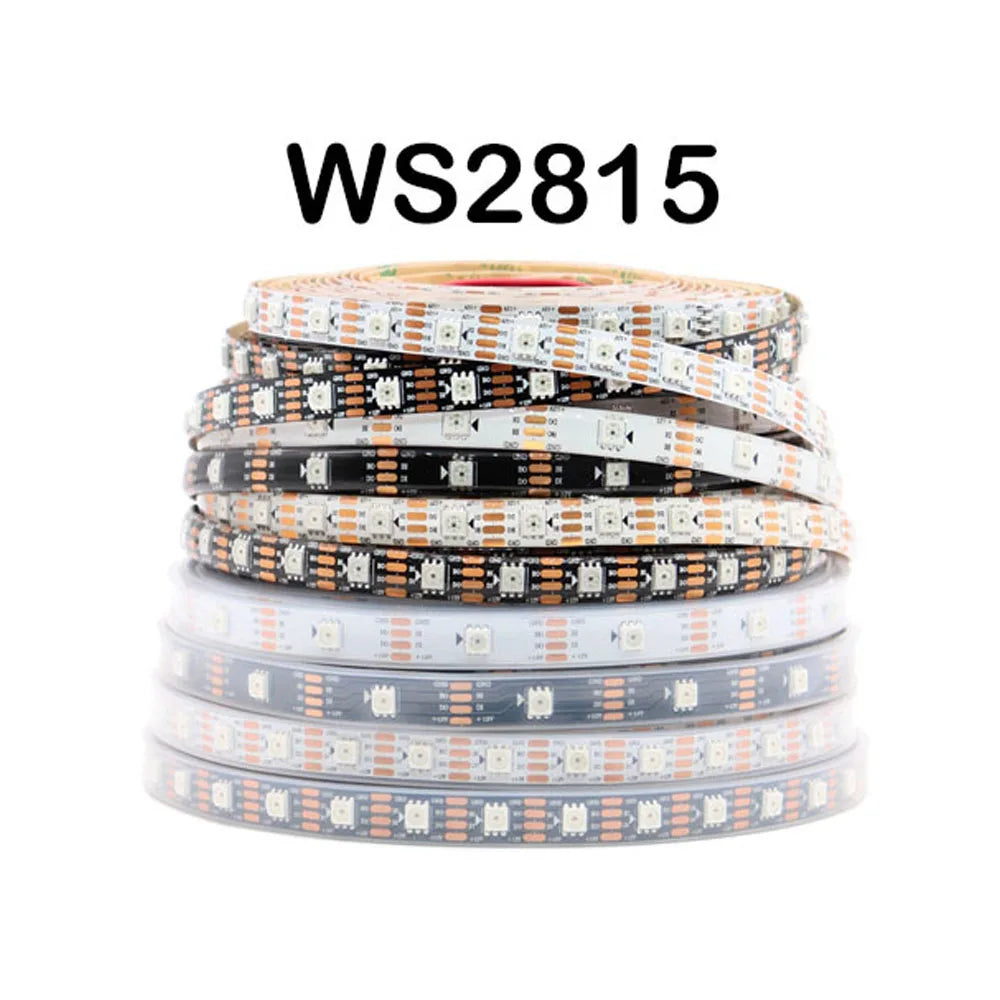

WS2815 LED Strip:
Input Voltage: DC12V
Power:
- 30 LEDs/m: 9W/m
- 60 LEDs/m: 18W/m
- 144 LEDs/m: 34W/m
LED Source: WS2815 LED (5050 SMD RGB LED with built-in improved version of WS2811 IC)
LED Control: Each LED is separately controlled
IC Type: Improved Version WS2815 IC (built inside the 5050 SMD RGB LED)
IC Details: 1 IC drives 1 LED chip
Pixels: 30/60/144 per meter
Pitch: 16.6mm (1000/64)
Gray Scale: 256
Bits per Color: 8 bits/color
FPC Width:
- 30 LEDs/m: 10mm
- 60 LEDs/m: 10mm
- 144 LEDs/m: 12mm
FPC Color: White/Black PCB
Protection Rate: IP30/IP65/IP67
Colors: Full-color RGB, dream color changing
Cuttable: Every LED is cuttable
Package: Packaged in an anti-static bag
- IP30 and IP65: Includes 3M adhesive tape on the back
- IP67: Without 3M adhesive
Working Temperature: -40°C to 70°C
Storage Temperature: -50°C to 80°C
Source Life: 50,000 hours
Connector: 4-pin connector terminal pair
- Red: 12V power
- Green: Data line
- Blue: Standby data line
- Black: GND
